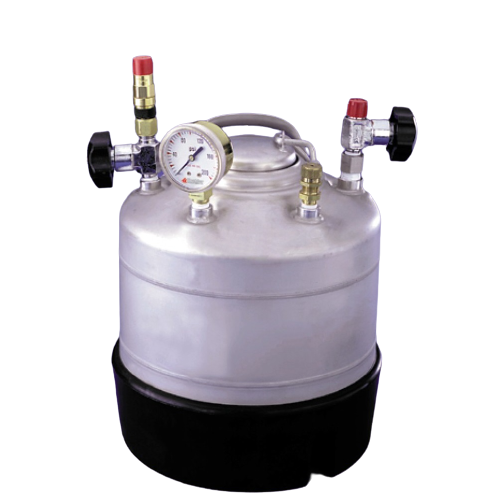

Koehler K10601 Pressure Vessel for Fuel Storage Stability (6 Unit)

Used for assessing potential storage stability of middle distillate fuels, including fuels with or without stabilizer additives, and freshly refined or previously stored fuels.

Specifications

- Conforms to the specifications of: ASTM D5304

- Capacity: 6 sample containers

- Construction: 316 stainless steel, in accordance with ASME specifications

- Working pressure at 90°C: Exceeds ASTM requirements

- Safety relief valve setting: 200psi (1.332kPa)

- Pressure gauge: 0-200psi

Dimensions: 151⁄2" high by 91⁄2" round

- Net weight: 17 lbs (8kg)

Shipping information

- Shipping weight: 22 lbs (10kg)

- Dimensions: 3.5 Cu. Ft.

Included accessories

- Glassware rack, hinged, for four, six or ten sample containers

- Charging hose with pressure tight crimp and quick disconnect

Additional accessories: K10540 Sample Container with lid
