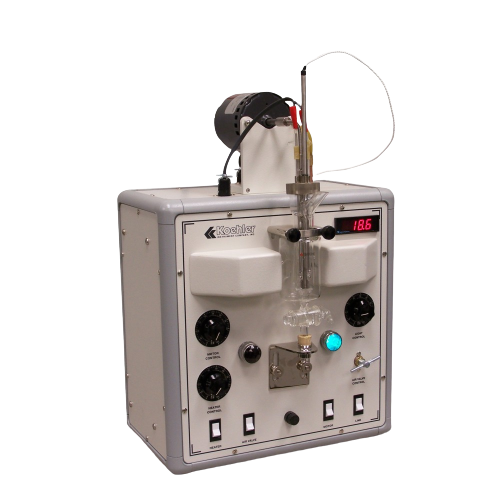

Koehler K10290 Automatic Aniline Point Apparatus (0-150°C)

Aniline point is used to characterize pure hydrocarbons and to indicate the aromatic content of hydrocarbon mixtures.

Specifications

- Conforms to the specifications of: ASTM D611; IP 2; ISO 2977; DIN 51775; FTM 791-3601; NF M 07-021

- Testing Range: 0 to 150°C (32 to 302°F)

- Temperature Display: 0-999.9°C

Electrical requirements: 220-240V 50/60Hz, Single Phase, 0.2A

Dimensions

- Ixwxh,in.(cm): 14 1⁄2x8 1⁄2x20 3⁄4 (37x22x53)

- Net weight: 31lbs (14.1kg)

Shipping information

- Shipping weight: 46 lbs (20.9kg)

- Dimensions: 28x24x20 in. (71.2x61.0x50.8cm)

Included accessories: Standard Borosilicate Glass Test Cell with drain

Additional accessories

- 250-000-33F ASTM 33F Thermometer - Range: –36.5 to +107.5°F 1

- 250-000-33C ASTM 33C Thermometer - Range: –38 to +42°C

- 250-000-34F ASTM 34F Thermometer - Range: 77 to 221°F 1

- 250-000-34C ASTM 34C Thermometer - Range: 25 to 105°C

- 250-000-35F ASTM 35F Thermometer - Range: 194 to 338°F 1

- 250-000-35C ASTM 35C Thermometer - Range: 90 to 170°C

- K10210 Borosilicate Glass Test Cell with drain

- K10220 Heating-Cooling Tube with platinum element
