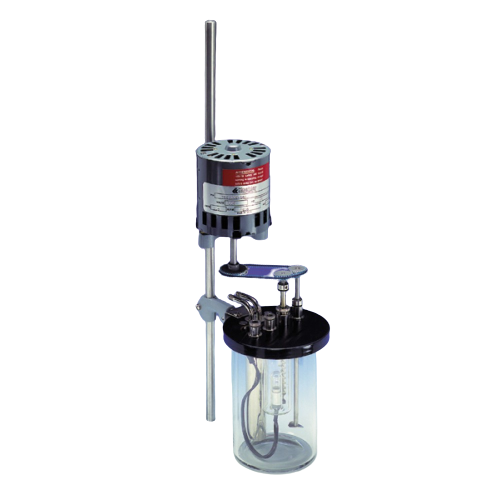

Koehler K10191 Thin Film Aniline Point Apparatus (400mL)

Aniline point is used to characterize pure hydrocarbons and to indicate the aromatic content of hydrocarbon mixtures.

Specifications

- Conforms to the specifications of: ASTM D611; IP 2; ISO 2977; DIN 51775; FTM 791-3601; NF M 07-021

- Bath medium: 400mL of heat transfer fluid (355-001-001 mineral oil is suitable for this application)

Electrical requirements: 220-240V 50/60Hz, Single Phase, 13.4A

Dimensions

- Ixwxh,in.(cm): 14 1⁄2x18 1⁄2x20 3⁄4 (37x22x53)

- Net weight: 7 lbs (3.2kg)

Shipping information

- Shipping weight: 11 lbs (5.0kg)

- Dimensions: 28x8x20 in. (71.2x20.3x22.9cm)

Included accessories

- Thermometer Ferrules (2)

- Clamps and Support Rod

Additional accessories

- 250-000-33F ASTM 33F Thermometer, Range: –36.5 to +107.5°F

- 250-000-33C ASTM 33C Thermometer, Range: –38 to +42°C

- 250-000-34F ASTM 34F Thermometer, Range: 77 to 221°F

- 250-000-34C ASTM 34C Thermometer, Range: 25 to 105°C

- 250-000-35F ASTM 35F Thermometer, Range: 194 to 338°F

- 250-000-35C ASTM 35C Thermometer, Range: 90 to 170°C

- K10020 Powertrol Heater, 115V 60Hz

- K10029 Powertrol Heater, 220-240V 50/60Hz
