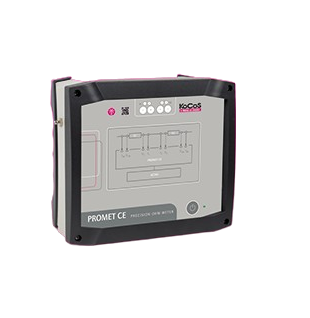

KoCoS PROMET CE Resistance Measurement (~250 mΩ)

Current source – Test current: 5 … 200 A DC

Current source – Outputs: 2

Current source – Output voltage: 2.5 V

Voltage measurement – Range: 20 mV, 200 mV, 2 V

Voltage measurement – Inputs: 2

Resistance measuring range: up to 250 mΩ

Power supply: Via hybrid cable and connection panel including power supply

Connections: 9 mm high-current sockets and 4 mm safety sockets

Housing: Portable plastic hand-held housing with carrying/fixing strap

Dimensions: 200 × 178 × 100 mm

Weight: 1.5 kg (without accessories)

Operation: via ACTAS-Software

Interfaces: M12 (Hybrid)
