KoCoS METES 3.5 Three Phase Energy Meter Calibration Verifier (3P, 85~250V)

Measurement

Voltage Range 3 x Phase 85..250V

Current Range

3 x 1Arms

3 x 10Arms

3 x100Arms

Current range selection Auto & Manual

Voltage Accuracy 0.1%

Current Accuracy 0.1%

Power Accuracy 0.2% (typical 0,1%)

Fundamental Frequency 50 and 60Hz

Measurement Options: Current ranges of 200A, 500A and 1000A are available.

General

Auxiliary supply: 85..265V, 45..65Hz (Internally selected to measured voltage)

Operating Temperature: 0..50 °C.

Display: 3.5 inch colour, touch display..

Housing: Robust poly carbonate

Waterproofs housing accommodates all sensors, wiring, optical eye, etc in same case!!

Totally waterproof – IP67

Dimensions (WxLxD): 315x255x150 mm.

Weight: 2.1 kg.

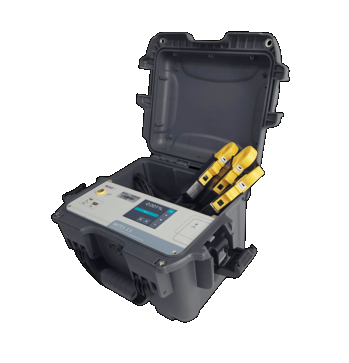

Portable, three-phase energy meter calibration verifier. This unit is primarily intended for the verification of electronic and Ferraris energy meters, specifically aimed at the growing pre-payment energy meter industry in developing and first-world countries.
