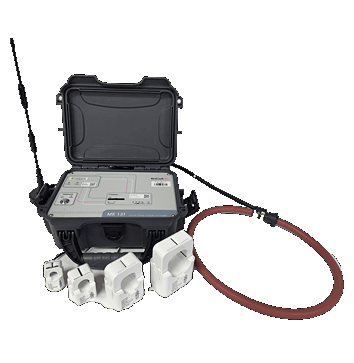

KoCoS ME 131 Online Energy Analyser and Logger

Specifications

Accuracy

Voltage and Current - 1%

Power and Energy - 2%

(Typical accuracy within 1%)

Housing

Robust ABS - L231 x W173 x H97 mm

Connections

Voltage inputs: 4 mm Banana sockets

Current bus: Via Redel socket

Power Supply

Internally connected to Phase A voltage circuit

Input voltage range: 85 V...265 VAC

Temperature Range

-10 to +50 Degrees Celsius

Network Connections

GPRS – 4G

Wi-Fi (2.4 GHz)

Available Current Sensors

50A - Split Core CT

100A - Split Core CT

200A - Split Core CT

400A - Split Core CT

1600A - Rogowski Coil (Flexible CT)

4000A - Rogowski Coil (Flexible CT)

Accessories

1 x Voltage Loom

4 x Voltage Jaw Clip

1 x CT Hub

1 x CT Hub Cable

1 x Antenna

1 x Carry Bag

Logs to CLOUD service via GPRS or Wi-Fi network,

including live values

Life time FREE cloud data hosting and viewing

Unique identification of each logged site info

Fast installation and App configuration

Compact and rugged case

28 x current inputs can be connected over 100 m on

RS485 comms bus (Plug & Play)

Mix between single and/or three phase circuits

Easy customizable dashboard to suite your needs

Push notifications via App
