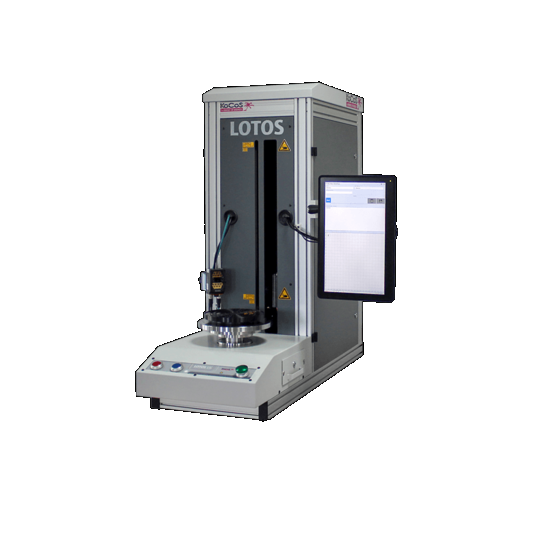

KoCoS LOTOS LSi-200 3D measurement and inspection (56 ~ 248 mm)
ManufacturerKoCoS(View more products from this manufacturer)
ModelLOTOS LSi-200
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Measuring sensor : 3D-Laser sensor
Measuring range (Dimension from … to …): 56 … 248 mm
Repeat accuracy : 4µm
Measuring range (Dimension / Diameter): 192 mm
(Difference between largest and smallest dimension of the measured object)
Measuring height range (with one component rotation): 65 mm
Throughput related to object height 15 mm : 4.5 s
Throughput related to object height 60 mm : 4.5 s
Max. Measuring object height : 500 mm
Throughput for single target cross-section : 4.5 s
Linearity - Dimension : ±8-22 µm
