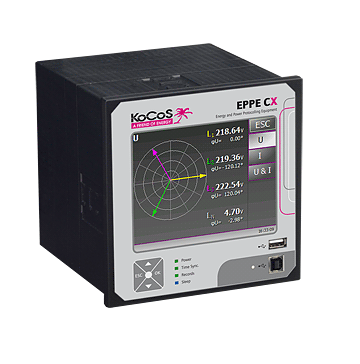

KoCoS EPPE CX Power Quality Analyzer

Display: 4 status LEDs

Operation: EPPE and SHERLOG operating software for Windows 7, Windows 8.1 (32 and 64 bit), Windows 10 (32 and 64 bit), Windows Server 2012 R2

Memory: 32 GB

Interfaces: 1 x RS232 / RS485, 1 x USB-A, 1 x USB-B, 2 x 10/100 Mbit Ethernet (RJ45)

Supply Voltage:

Nominal range: 100…250 VDC and 90…250 VAC; 47…63 Hz

Working range: +6% / -15% of the nominal range

Analog Inputs:

4 x voltage up to 600 VAC / ±848 VDC

4 x current up to 10 AAC

Sampling rate: 200 kHz per channel

Binary Inputs: 16 inputs, connected to common potential

Binary Outputs: 6, connected to common potential

Standards: IEC 60255-27, EN 61000-6-2, EN 61000-6-4, EN 61010-1:2011, IEC 61850, IEC 60870-5-103
