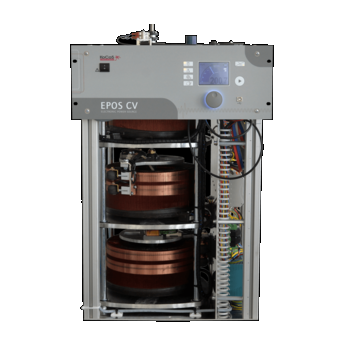

KoCoS EPOS CV 753 Single and three-phase voltage sources

Three-phase

Source:

Voltage:

3x 15...300 VAC

3 × 15... 520 VAC;

1 × 15.... 300 VDC

Step value: 1 V

Accuracy : ± 1 %

Current : 3 x 25 AAC; 1 x 32 ADC

Transformer specifications: 22,500 VA

Frequency : DC, 50 or 60 Hz 1)

Rectification : Six-pulse bridge circuit 3)

Protection : Overcurrent, short-circuit, overload,limitation of switch-on current

Regulation : Motor-controlled

Measurement:

Voltage : up to 540 VAC

Accuracy : < 0.2 %

Current : up to 110 AAC

Accuracy : < 0.1 %

Sampling rates : 500 Hz up to 10 kHz

Complete system:

Power supply : 3 x 400 VAC; 50/60 Hz; Discrete connections for supplying power to the control electronics and the power module separately

Connections : Industrial plug connectors

Housing: 19“ 18 U

Screen : High-resolution 3.5" screen

Operation : Jog wheel and 6 function keys

Display elements: 6 status LEDs, status signals screen,illuminated ring on the jog wheel

Interfaces: RJ 45 (Ethernet), USB-B
