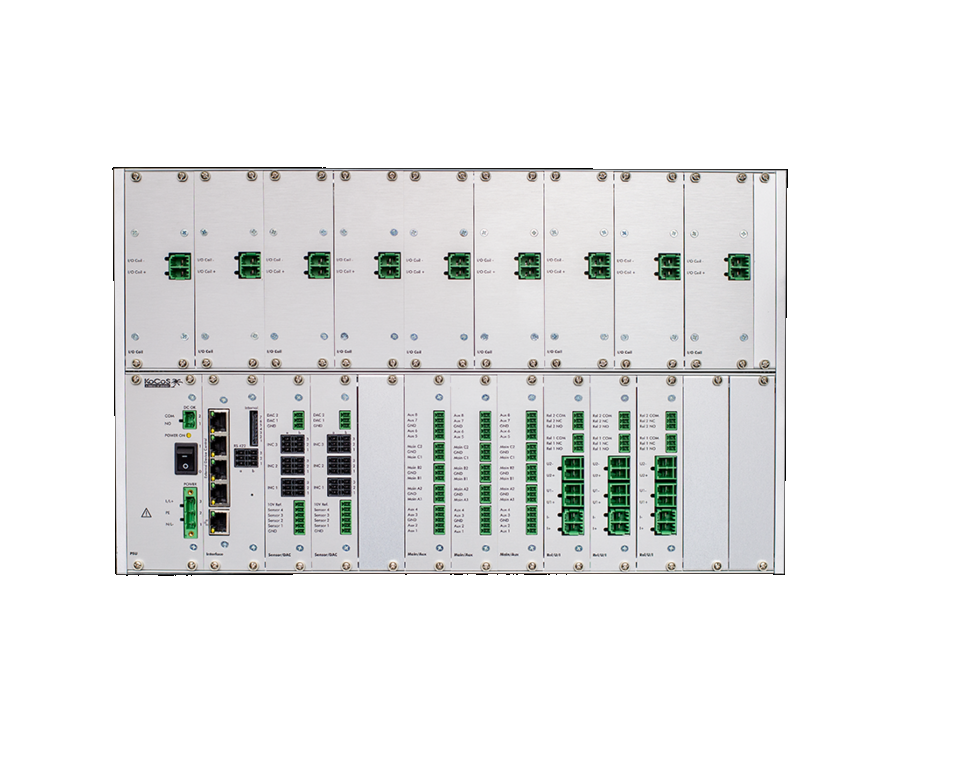

KoCoS ACTAS L360 Stationary Switchgear Test System

Control outputs

Closing coils: 3

Opening coils: 6

Relay control outputs: 6

Analog control outputs: 4 (0…10 VDC)

Analog measurement inputs

Coil current: 9 × (I/O)

Coil/station voltage: 3

Motor current via shunt: 3

Motor voltage: 3

Sensor (digital/incremental): 6

Sensor (+/-10 V): 6

Sensor (0…20 mA): 2

Main and PIR contacts: 9 × 2

Binary measurement inputs

Auxiliary contacts: 6 × 4

Reference voltage for external sensors

2 × 10 VDC / 200 mA

Connections for additional equipment

PC: 1

PROMET / voltage sources: 3

CSW 3: 1

Housing

19" housing for rack mounting, 84 HP, 6U

Dimensions (W × H × D): 482.6 mm × 265.9 mm × 242.0 mm

Weight: 7.3 kg

Datasheet
