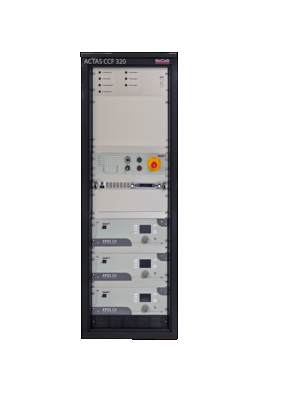

KoCoS ACTAS CCF320 Stationary Switchgear Test System
ManufacturerKoCoS(View more products from this manufacturer)
ModelACTAS CCF320
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Closing coils: 3
Opening coils: 3
Relay control outputs: 14 + 1 per drive
Analog control outputs (0…10 VDC): 6
Coil current: 6 × (I/O)
Coil / station voltage: 3
Motor current via shunt: 3
Motor voltage: 3
Sensor (digital / incremental): 9 + 1 per drive
Sensor (+/−10 V): 9
Sensor (0…20 mA): 3
Main and PIR contacts: 3 × 6
Auxiliary switch contacts: 24 + 72 (10 kHz) + 14 per drive (10 kHz)
Reference voltage for external sensors: 3 × 10 VDC / 200 mA
