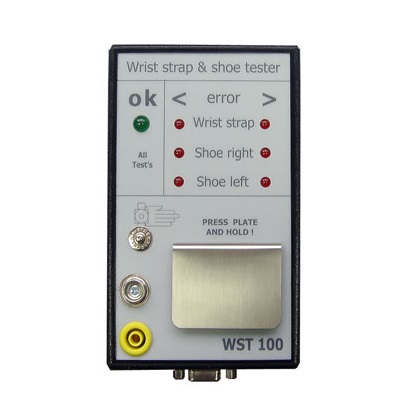

KLEINWACHTER WST 100 WST und Shoe - Tester (200MΩ)

Dimensions:

Hand-held unit: approx. 150mm x 88mm x 35mm

Shoe electrode: approx. 430mm x 500mm x 10mm

Weight:

Hand-held unit: approx. 250g

Shoe electrode: approx. 2kg

Power supply:

4 x Mignon (AA) in the hand-held unit

optional: Wall wart WST 100 NT

Display: 1 LED 8mm green, 6 LED 5mm red, 1 buzzer

Relay contact: potential-free shutter 60V 2A

Measuring principle: Voltage current measuring principle, therefor constant measuring voltage

Measuring voltage: 20V±5%

Connection: All connections over 9-pin Sub-D plug

Tresholds:

The tresholds are seperately adjustable for the wrist strap- and the shoe test.

Lower treshold from 0 to 2MΩ

upper treshold from 0 to 200MΩ

Manual

Datasheet

Features

The WST100 provides a function test for electrostatic wrist straps and conductive footwear. Before you get access to ESD-secured areas the ESD precautions like wrist straps and conductive footwear should be tested on correct function.

The WST100 is a reliable and advantageous solution for this. The appliance is portable and through its battery power employable everywhere.

The setting of the tresholds and the calibration can be done very simply by the customer himself.

As a specialty the device has included a statistical error memory, which allows a statistic evaluation of the errors.
