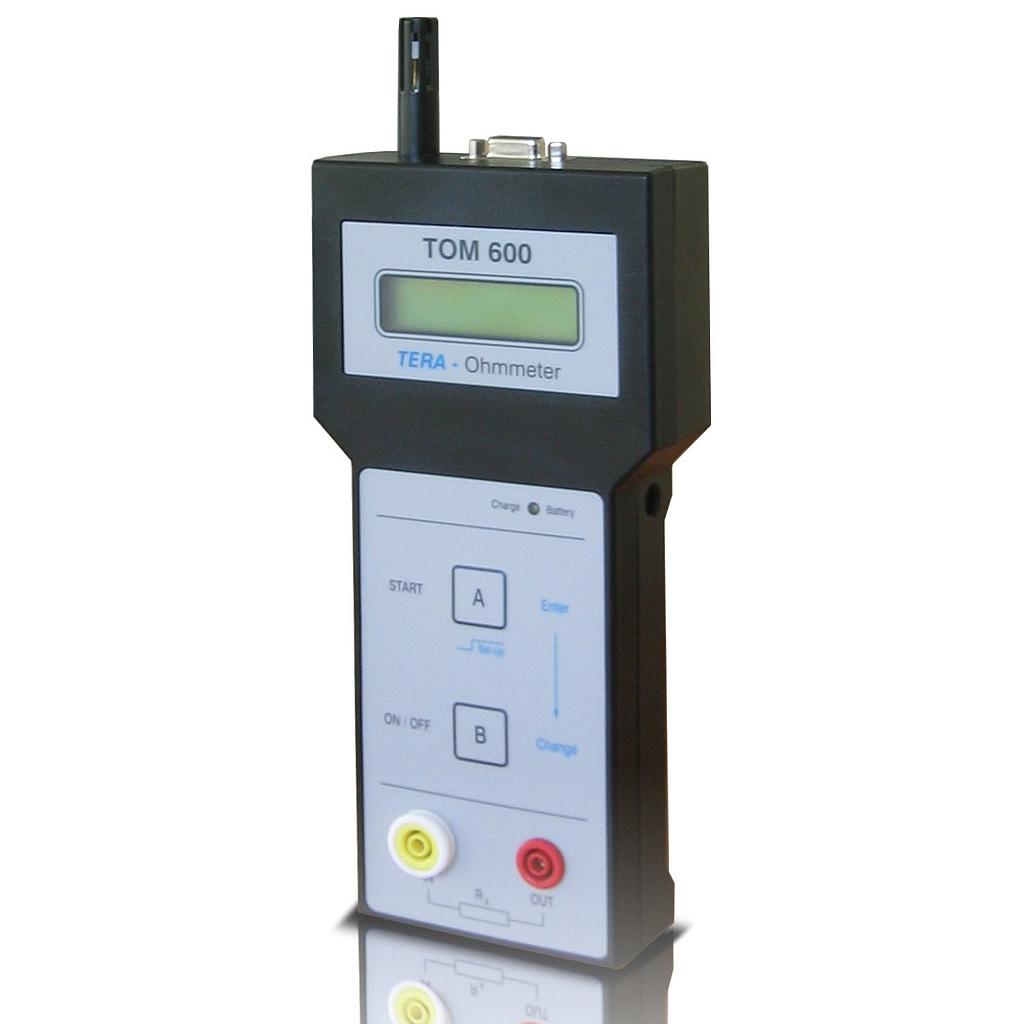

KLEINWACHTER TOM 600 TERA Ohmmeter (10 kΩ ~ 2 TΩ)

Measuring range

10 kΩ... 2 TΩ

( 104....1012Ω)

tolerance: ± 1 x 10n

Measuring voltages

< 200kΩ = 10V

> 200kΩ = 100V

Dimensions: 200mm x 100mm x 40mm (L x W x H)

Weight: approx. 380g (without batteries)

Display: Alphanumeric display (2 rows x 16 digits), indicator panel 60mm x 15mm

PC-Interface: USB - Interface with small USB Socket

Power supply: 4 pc. AA cells, 2100mAh. (permanent supervised) operating time approx. 6h with fully charged cells, external with mains adapter 9V DC / 300mA

Charging time: max. 14h

Power comsumption: max. 100mA

Auto Switch Off: approx. 5min after the measurement, when no button pressed

Scope of delivery:

TOM 600

Mains adapter

4 pc. AA Mignon NiMH storage batteries

1 pc. teflon coated measuring strip 1m with 4mm banana plugs

1 pc. teflon coated measuring strip 5m with 4mm banana plugs

Serial PC cable

PC software on 3,5" floppy

Manual
