KLEINWACHTER EFM 022 VMS Electro Field Meter with Voltmeter Set (± 1MV/m)

E-Field Meter Ranges:

Manual selected.

± 20kV/m; ± 200kV/m und ± 1MV/m

Max. Value:

Distance 1cm is switched on (for MK 023)

After pressing the switch the maximum pos. and neg. Measure Values are displayed (Walking Test). By pressing the switch again the values will be reset and starts again.

No zero drift

Therefore a zero adjustment is not needed before each measurement.

Measurement ranges:

distance 1cm:0 to 10kV

distance 2cm:0 to 20kV

distance 5cm:0 to 50kV

distance 10cm:0 to 100kV

distance 20cm:0 to 200kV

Dimensions:122mm x 70mm x 26mm ( L x W x H )

Weight:approx. 130 g (without battery)

Power supply:9V Alkali battery IEC 6F22

Display:

2-line alphanumeric LC-display with 12 digits each

The measurement distance in cm will be displayed in the first line, the voltage potential will be indicated in volts in the second line.

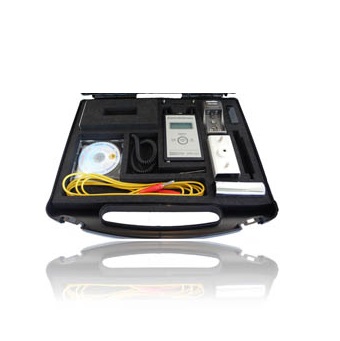

Scope of delivery:

Voltage measuring head MK023

Stand for secure installation of the EFM.

Conductive plastic case to hold all accessories

Hand electrode

5m silicone cable

Datasheet
