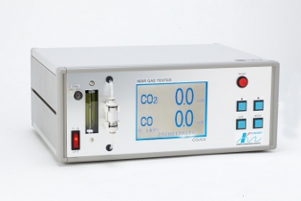

Kitagawa UR-23AU3 CO/CO2 Monitor (0.0 - 5.0vol%/ 0.0 - 20.0vol%)

Measuring gas: Carbon monoxide/ Carbon dioxide

Detection method: NDIR

Sampling method: Suction type

Measuring Range: 0.0 - 5.0vol%/ 0.0 - 20.0vol%

Resolution: 0.1vol%

Accuracy: ±5% of full scale

Display: LCD

Power Source: AC 100V-15 - +10% 50/60Hz

Analogue output: DC4 - 20mA(liner)

Operating temperature: -10 - 50C°; below 90%RH(non-condensing)

Dimensions: 370(W) x 157(D) x 315(H)mm

Weight: Approx. 7.5kg

Measures high concentration of Carbon monoxide and Carbon dioxide for process control of gas generators for heat-treated metal parts.

Highly reliable accurate NDIR method.

Displays concentration of 2 components digitally and analogue outputs.
