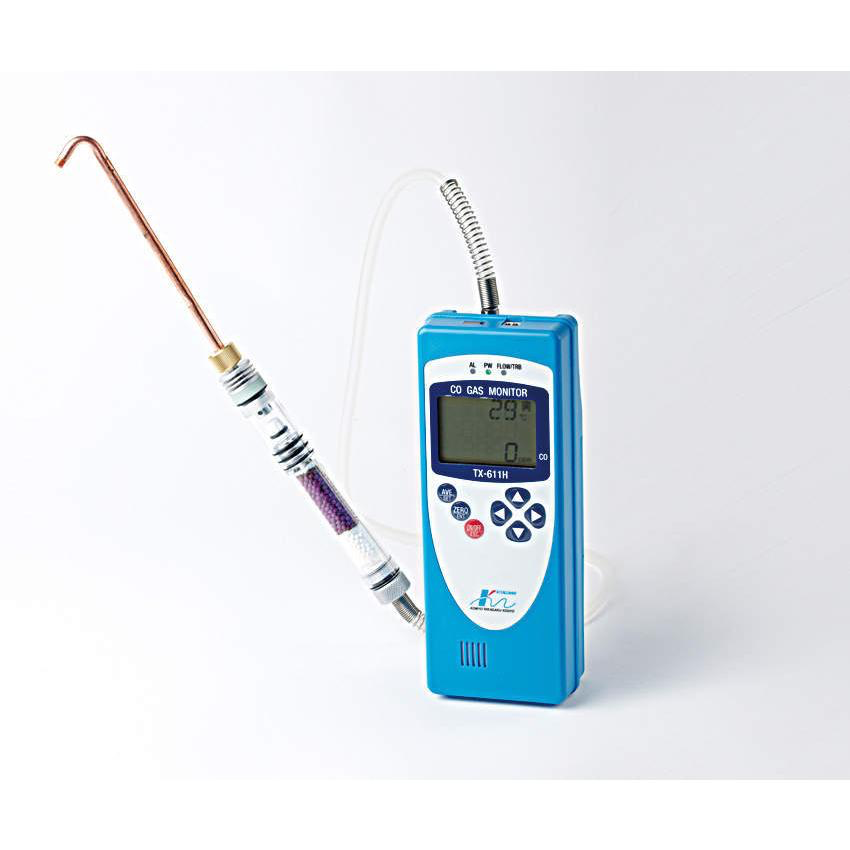

Kitagawa TX-611H Flue Gas Tester (0 - 5,000ppm)

Measuring Gas: Carbon monoxide

Measuring Principle: Chronoamperometry

Measuring Range: 0 - 5,000ppm

Resolution: 1ppm

Indication accuracy: 0-200ppm; ±20ppm of indication value/ 201-5,000ppm; ±10% of indication value

Alarm accuracy: 0-200ppm; ±20ppm of indication value/ 201-5,000ppm;±10% of indication value

Measuring Gas: Flue gas temp. (optional)

Measuring Principle: Thermocouple

Measuring Range: 0 - 750°C

Resolution: 1°C

Indication accuracy: ±5°C

Alarm accuracy: ±5°C

General

Sampling method: Suction type Approx.0.6L/min (at room temperature with gas sampling probe)

Display: Digital liquid crystal

Alarm Method: LED lamp, LCD display and buzzer

Response Time: Within 15 seconds at 90% response

Power Supply: 3 x size AA Alkaline dry battery(LR6)

Continuous Operating time: Approx. 20 hours, no alarm

Operating Temperature Range: -10-40°C; 30-85%RH (non-condensing)

Main body dimensions: 78(W) x 200(H) x 50(D)mm

Main body weight: Approx. 550g (including batteries)

Standard accessories: Gas sampling probe with NOx filter, dust filter, nozzle with food, key-shaped nozzle, carrying case

Suitable for CO measurement in flue gas from combustion appliances Temperature measurement as an option

Not affected by CO2 within flue gas

Easy to read with big display

Failures, low flow alarm, battery capacity shown on display

Data logger function
