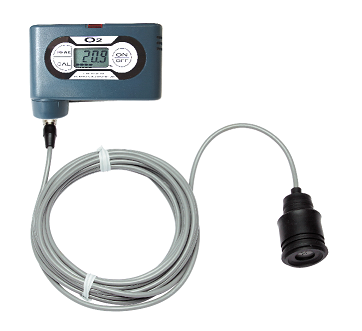

Kitagawa OPA-6000E Oxygen Monitor (0 ~ 50.0vol%/ -10 to 40 ℃)

Measuring gas: Oxygen in the air

Sampling: Diffusion type

Measuring principle: Galvanic cell

Measuring range: 0 to 50.0vol% (Resolution 0.1vol%)

Indication accuracy:

Within ±0.5vol% O2 at 0.0-25.0vol%

Within ±3.0vol% O2 over 25.1vol%

Response time: Within 15 seconds at 90% response (at 20 ℃)

Alarm accuracy: ±0.5vol% against alarm setting value 18.0vol%

Alarm setting: 18.0vol%

Alarm method: LCD display, LED Lamp, buzzer and vibration

Explosion proof: Ex ia ⅡC T4 Ga (No.TC22742)

Power supply: 3 x size "AAA" Alkaline battery,

LR03 manufactured by TOSHIBA LIFESTYLE PRODUCTS AND SERVICES CORPORATION

Run time *2: Approx. 1000 hrs

Operating temperature range: -10 to 40 ℃; 30 to 85 %RH(non-condensing)

Dimensions: 105 (W) X 56 (H) X 29 (D)mm (excluding a sensor)

Weight: Approx. 150 g (including batteries)

Standard accessories: Carrying case attached in a waist band

Remote measurement (optional): Sensor cord assembly (5m, 10m, 20m or 30m), adapter assembly
