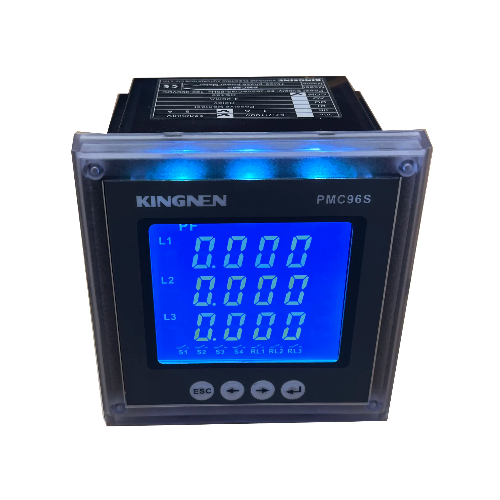

Kingsine PMC96S 3 Phase Multifunctional Power Meter
Electrical characteristics
Measure Type: 3P3W ACsystem,3P4W ACsystem
Sampling rate: 128 points per cycle
Data refresh rate: 1S
Measure accuracy:
+ Current: ±0.2%FS
+ Voltage: ±0.2%FS
+ Power: 0.5S
+ Frequency: ±0.001Hz
+ DC input(AI): 0.5% FS
+ DC output(AO): 0.5% FS
Input voltage characteristics
+ Measure Voltage: 3 *220/380V(Directly input) 3 * 57.7/100V(PT secondary side)
+ Allowed overload capability: 1.2 times/continuous
+ Input resistance: 300KΩ/phase
Input current characteristics
+ Measure current: 5A (CT Secondary side)Or 1A (CT Secondary side)
+ Allowed Overload capability: 1.2 times/continuous
+ Input resistance: <0.1Ω
Binary input
+ Working valtage: 15 VDC
+ Input resistance: 12KΩ
+ Isolation valtage: 2KV
Relay Output
+ Node type: Mechanical contact
+ Node capability: 220 VAC/5A、30 VDC/5A
4-20mA DC input measurement
+ Measure current: 4-20mA
+ Allowed Overload capability: 1.2 times/continuous
+ Input resistance: 10Ω
+ Isolation voltage: 2KV 0-5V
DC input measurement
+ Measure voltage: 0-5V
+ Allowed Overload capability: 1.2 times/continuous
+ Input resistance: 12.5KΩ
+ Isolation voltage: 2KV 4-20mA
DC output
+ Open-circuit: 15VDC
+ Load capability: ≤600Ω
+ Isolation voltage: 2KV
Power supply
+ AC: 85~264 VAC/45-65Hz
+ DC: 100~375 VDC
+ Power consumption: < 3W
Mechanical performance
Weight: <0.5kg
IP protection Level: Meter Panel IP52
Meter Host IP30
Dimension(Host): 96x96x72 mm
Working temperature
+ Display screen: -20~70℃
+ Meter: -25~70℃
Storage temperature:
Meter+display screen: -40~85℃
Relative humidity: 5% - 90%RH， No condensation
PMC96S selection guide
| Model specification：：PMC96S-①-②-③-④-⑤ | |
| ① Model code： | |
| 1 | 57.7/100V Rated measurement voltage，5A Rated measurement current。 |
| 2 | 57.7/100V Rated measurement voltage，1A Rated measurement current。 |
| 3 | 220/380V Rated measurement voltage，5A Rated measurement current。 |
| 4 | 220/380V Rated measurement voltage，1A Rated measurement current。 |
| ② Model code： | |
| 1 | Power supply：85~264 VAC/45-65Hz，100~300 VDC 。 |
| ③ Model code： | |
| 0 | Without DI |
| 2 | 2 Channels DI |
| ④ Model code： | |
| 0 | Without relay output |
| 1 | Optional 1 channel relay output(RL1+、RL1- port) |
| 2 | Optional 2 channels relay output |
| ⑤ Model code： | |
| ab | ab is a 2 integer,a means AI01 port optional for AI/AO modules, b means AI02portoptional for AI/AO 0 –none 1 - 0-5V DC analog input measure(AI) 2 - 4-20mA DC analog input measure(AI) 3 - 4-20mA DC analog output(AO) For example:ab = 00,meansnot equipped with AI/AOmodule ab = 21,Means AI01 port is equipped with 0-5V DC analog input measureAI/AOmodule, AI02 port is equipped with 4-20mA DC analog input measureAI/AOmodule |
* Note: PORTS S1, S2 and A1 are multiplexed. If DI is configured, PORT A1 cannot be configured with AI or AO. If port A1 is configured with AI/AO, DI cannot be configured.
For example: Order model: PMC96S-3-1-2-2-20
Means PMC96S rated measure 220/380V、5A；working power supply as 85~264 VAC/45-65Hz；Optional with 4channels binary input(DI); 2 channels relay output；1 channel 4-20mA DC analog input measure(AI02 port)
