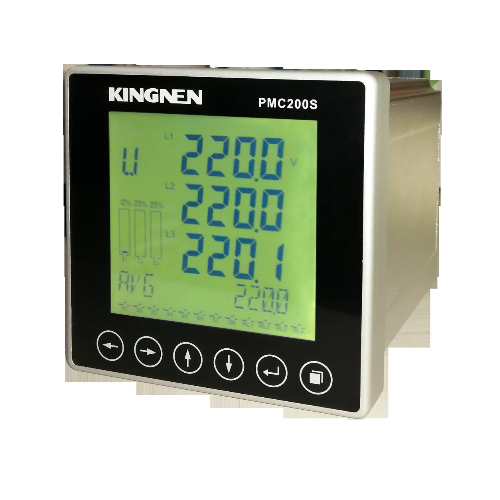

Kingsine PMC200S Multifunctional Power Meter for Power Management
Electrical characteristics
Measure Type: 3P3W ACsystem,3P4W ACsystem
Sampling rate: 128 points per cycle
Data refresh rate: 1S
Measure accuracy:
+ Current: ±0.2%FS
+ Voltage: ±0.2%FS
+ Power: 0.5S
+ Frequency: ±0.001Hz
+ Active Energy: 0.5S
+ Reactive Energy: 1.0S
+ DC input(AI): 0.5% FS
+ DC output(AO): 0.5% FS
Input voltage characteristics
+ Measure Voltage: 3 *220/380V(Directly input) 3 * 57.7/100V(PT secondary side)
+ Allowed overload capability: 1.2 times/continuous
+ Input resistance: 300KΩ/phase
Input current characteristics
+ Measure current: 5A (CT Secondary side)Or 1A (CT Secondary side)
+ Allowed Overload capability: 1.2 times/continuous
+ Input resistance: <0.1Ω
Binary input
+ Working voltage: 12~24 VDC
+ Input resistance: 12KΩ
+ Isolation voltage: 2KV
Relay Output
+ Node type: Mechanical contact
+ Node capability: 220 VAC/5A、30 VDC/5A
4-20mA DC input measurement
+ Measure current: 4-20mA
+ Allowed Overload capability: 1.2 times/continuous
+ Input resistance: 10Ω
+ Isolation voltage: 2KV
0-5V DC input measurement
+ Measure voltage: 0-5V
+ Allowed Overload capability: 1.2 times/continuous
+ Input resistance: 12.5KΩ
+ Isolation voltage: 2KV
4-20mA DC output
+ Open-circuit: 15VDC
+ Load capability: ≤600Ω
+ Isolation voltage: 2KV
Power supply
+ AC: 100~240 VAC/45-65Hz
+ DC: 100~375 VDC
+ Power consumption: < 3W
Mechanical performance
Weight: 0.5kg
IP protection Level: Meter Panel IP52
Meter Host IP30
Dimension(Host): 96 X 96 X 72 mm
Working temperature
+ Display Screen: -20~70℃
+ Meter: -25~70℃
Storage temperature:
Meter+display screen: -40~85℃
Relative humidity: 5% - 90%RH， No condensation
Ordering instruction
| Model specification：PMC200S-①-②-③-④-⑤ | |
| ①Model code： | |
| 1 | 57.7/100V Rated measurement voltage，5A Rated measurement current。 |
| 2 | 57.7/100V Rated measurement voltage，1A Rated measurement current。 |
| 3 | 220/380V Rated measurement voltage，5A Rated measurement current。 |
| 4 | 220/380V Rated measurement voltage，1A Rated measurement current。 |
| ②Model code： | |
| 1 | Power supply：85~264 VAC/45-65Hz，100~300 VDC 。 |
| ③Model code： | |
| 0 | Without DI |
| 4 | 4 Channels DI |
| ④Model code： | |
| 0 | Without relay output |
| 1 | Optional 1 channel relay output(RL1+、RL1- port) |
| 2 | Optional 2 channels relay output |
| ⑤Model code： | |
| ab | ab is a 2 integer,a means AI01 port optional for AI/AO modules, b means AI02 port optional for AI/AO 0 –none 1 - 0-5V DC analog input measure(AI) 2 - 4-20mA DC analog input measure(AI) 3 - 4-20mA DC analog output(AO) For example: ab = 00,Means AI 01 port is not equipped with AI/AO module, AI02 port is not equipped with AI/AO module ab = 12,Means AI01 port is equipped with 0-5V DC analog input measure AI/AO module, AI02 port is equipped with 4-20mA DC analog input measure AI/AO module |
For example: Order model: PMC200S-3-1-4-2-12
Means PMC200S rated measure 220V/380V,5A, working power supply as 85-264VAC/45-65HZ,Optional with 4channels binary input(DI), 2 channels relay output; 1 channel 0-5V DC analog input measure(AI01 port),1 channel 4-20mA DC analog input measure(AI02 port)
