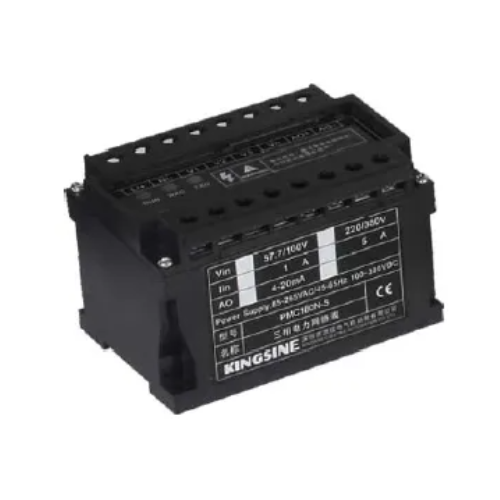

Kingsine PMC180NS Three-Phase Network Multifunctional Power Meter

Electrical characteristics

Measure Type: 3P3W ACsystem,3P4W ACsystem

Sampling rate: 64 points per cycle

Data refresh rate: 1S

Measure accuracy:

+ Current: 0.5%

+ Voltage: 0.5%

+ Power: 0.5%

+ Frequency: 0.05Hz

+ Active Energy: 1.0%

+ Reactive Energy: 2.0%

+ AO: 1%

Input voltage characteristics

+ Measure Voltage: 3 *220/380V(Connected directly ; 3 * 57.7/100V(connected by CT)

+ Allowed overload capability: 1.2 times/continuous

+ Input impedance: 1.8MΩ

Input current characteristics

+ Measure current: 5A or 1A (connected by CT)

+ Allowed Overload capability: 1.2 times/continuous

+ Input resistance: <0.1Ω

Binary input

+ Working voltage: Passive dry contact (built-in + 15 VDC power supply)

+ Input resistance: 5KΩ

+ Isolation voltage: 2KV

Relay Output

+ Node type: Mechanical contact

+ Node capability: 220 VAC/5A、30 VDC/5A

Power supply

+ AC: 85~264 VAC/45-65Hz

+ DC: 100~300 VDC

+ Power consumption: < 3W

Mechanical performance

Weight: 0.5kg

IP protection Level: IP52

Dimension(Host): 96x96x102 mm

Operating temperature: -40~70℃

Storage temperature: -50~85℃

Relative humidity: 5% - 90%RH， No condensation
