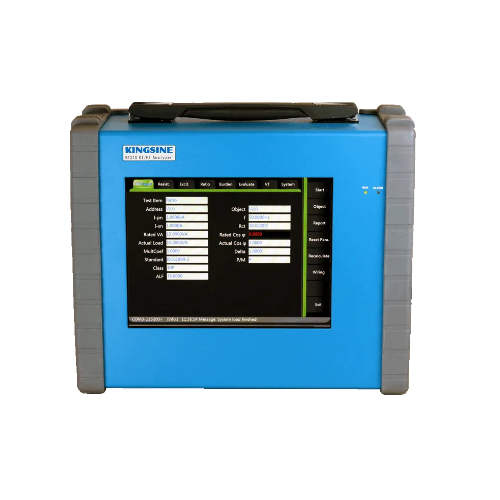

Kingsine KT210 CT/PT Analyzer (120V / 15A)

Ratio Accuracy

Ratio 1 - 5000: 0.03 % (typical) / 0.1 % (guaranteed)

Ratio 5000 - 10000: 0.05 % (typical) / 0.2 % (guaranteed)

Phase Displacement

Resolution: 0.01 min

Accuracy: 1 min (typical) / 3 min (guaranteed)

Winding Resistance

Range: 0.1 - 100 Ω

Resolution: 1 mΩ

Accuracy: 0.05 % + 1 mΩ (typical) (guaranteed)

0.1 % + 1 mΩ (guaranteed)

Load Measurement

Range: 0~300VA

Resolution: 0.01VA

Voltage Measurement Input

Secondary Input Range: 0~300V

Max Knee point: 30KV

Secondary Input Accuracy: ±0.1%

Primary Input Range: 0~30V

Primary Input Accuracy: ±0.1%

Output

Output Voltage: 0 Vac to 120 Vac

Output Current: 0 A to 5 A (15 A peak)

Output Power: 0 VA to 450 VA (1500 VA peak)

Main Power Supply

Input Voltage: 176 Vac to 264 Vac @ 10A Max

Permissible Input Voltage: 120 Vdc to 370 Vdc @ 5A Max

Frequency: 50 / 60 Hz

Permissible Frequency: 47 Hz to 63 Hz

Connection: Standard AC socket 60320

Physical Dimensions

Size (W x H x D): 360 x 140 x 325mm

Weight: <8 kg (without accessories)

Environment Conditions

Operating Temperature: -10°C up to + 55°C

Storage Temperature: -25°C up to + 70°C

Humidity: Relative humidity 5% up to 95% not condensing
