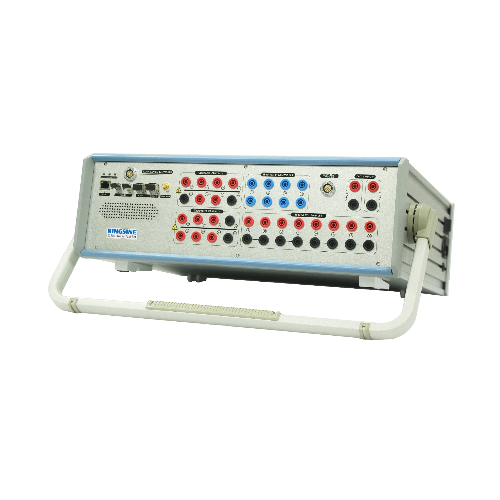

Kingsine K3130i Intelligent Protection Relay Test Set (3 x 35A, 4 x 310V)

Voltage Outputs:

Output Range & Power:

+ 4×310 V ac (L-N): 124 VA max each

+ 3×350 V dc (L-N): 140 W max each

Accuracy: ±2mV @ <2V ac

<0.015%Rd+0.005Rg Typ. @ 2~310V ac

<0.04%Rd+0.01Rg Guar. @ 2~310V ac

±10mV @ <5V dc

±0.5% @ ≥5V dc

Voltage Range

+ Range I : 30V

+ Range II : 310V

+ Automatic Range

DC Offset: <20mV Typ./ <100mV Guar

Resolution: 1mV

Distortion: <0.015%Typ. / <0.05% Guar.

Current Outputs

Output Range & Power:

+ 3×35A ac (L-N): 480 VA max each

+ 1×100A ac (6L-N): 1200 VA max

+ 3×20A dc (L-N): 300W max each

Accuracy: ±1mA @ <0.5A ac

<0.02%Rd+0.01Rg Typ. @ 0.5A~35A ac

<0.05%Rd+0.02Rg Guar. @ 0.5A~35A ac

±5mA @ <1A dc

±0.5% @ ≥1A dc

Current Range:

+ Range I: 3A

+ Range II: 35A

+ Automatic Range

DC Offset: <3mA Typ./ <10mA Guar

Resolution: 1mA

Distortion: <0.025%Typ. / <0.07% Guar.

Low-Level Output

Quantity:13 Channels, 16 pin combination female socket

Voltage Outputs Range:AC 0~8V, DC 0~10V

Current Outputs Range:Nominal 2mA, 10mA max transient

Output Power:≥0.5VA

Accuracy:(0.01~0.8 Vrms):<0.05% Typ. / <0.1% Guar.

(0.8~8 Vrms): <0.02% Typ. / <0.05% Guar.

Resolution:0.25mV

Distortion (THD%):<0.05% Typ. / <0.1% Guar.

Frequency Range:0~3000KHz

DC Offset:<0.15mV Typ. / <1.5mV Guar.

Frequency & Phase Angle

Frequency Range:DC~1KHz, 3KHz transient

Frequency Accuracy:±0.5ppm

Frequency Resolution:0.001 Hz

Phase Range:-360°~360°

Phase Accuracy:<0.02° Typ. / <0.1° Guar. 50/60Hz

Phase Resolution:0.001°

Aux. DC Voltage Source (Battery simulator)

Range0~350V @ 140W max

Accuracy0.5%Rg Guar.

Binary Input

Quantity8pairs

Typewet/dry, measurement

Threshold10~600Vdc or potential free, Programmable

Time resolution10us

Sampling Rate10KHz

Debounce time0~25ms (Software Controlled)

Time rangeInfinite

Time errors±1ms @ ≤1s, ±0.1% @ >1s

Galvanic isolation4 isolated with each 2 pairs

Binary Output (Relay Type)

Quantity4pairs

TypePotential free relay contacts, software controlled

Break Capacity ACVmax: 400Vac / Imax:8A / Pmax:2500VA

Break Capacity DCVmax: 300Vdc / Imax:5A / Pmax:150W

Binary Output (Semiconductor Type)

Quantity4pairs

Type:Open-collector, Combination type female

Break Capacity DC5~15Vdc / 5mA, 10mA max

AC not permit

Response time:100us

Synchronization

Synchronization Mode　GPS, SMA type antenna connector

IRIG-B (Optical fiber, FT3 type)

Power supply & Environment

Nominal Input Voltage100~240Vac

Permissible Input Voltage85~260Vac, 125~350VDC

Nominal Frequency50/60Hz

Permissible Frequency45Hz~65Hz

Power Consumption1500 VA max

Connection TypeStandard AC socket 60320

Operating Temperature-10℃~55℃

Storage Temperature-20℃~70℃

Humidity<95%RH, non-condensing

Others

PC Connection:RJ45 Ethernet, 10/100M

Grounding Terminal:4mm banana socket

Weight:17.5 Kg

Dimensions(W x D x H):468×375×164(mm)
