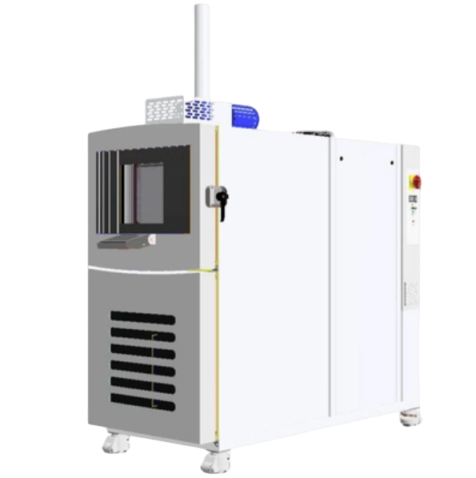

KINGPO QTS2-150 Environmental Test Chamber (-80℃ ~ +200℃)

High temperature bath temperature range: +60℃~+200℃

Low temperature bath temperature range: A (-55℃~-10℃); B (-65℃~-10℃); C (-80℃~-10℃) conditions are optional

Temperature fluctuation degree: ±0.5°C

Heating up time RT room temperature: ~+200℃≤15min

Cooling time: A(+20℃~ -55℃)≤70min; B(+20℃~ -65℃)≤80min; C(+20℃~ -75℃)≤90min

Shock recovery time: ≤5min

Basket movement time: Within 10S

Inner box size (W×H×D) mm: 500×500×600

Impact temperature:
High temperature: +60℃~+150℃

Low temperature: L (-10℃~-40℃); F(-10℃~-55℃); X(-10℃~-65℃) conditions optional

Construction materials Steel plate baking paint or 304 stainless steel (inner/outer box)
