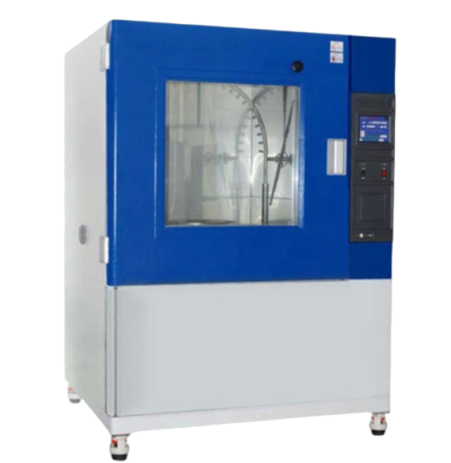

KINGPO KP-IPX34-800 Rain Spray Chamber (80–150 KPa, 0.07 L/min +5%)

External dimension(mm): 800×1100×1550mm

Internal dimension(mm): 800×800×800mm

Test-bed speed(rpm): 1~5 adjustable; rotary table 500MM; Height: 200mm adjustable

Spray ring radius(mm): 400

Spray pipe swing angle range: 120°,320°(approximate) (1)Nozzle angle: 120°(IPX3), 180°(IPX4)(2)swing angle: 120°(IPX3),320°(IPX4)

Blowhole diameter(mm): φ0.4

Blowhole diameter spacing(mm): 50

Flow of each blowhole::0.07 L/min +5%

Spay water pressure (Kpa): 80-150

Swing of swinging pipe: max ±180°(approximate)

Swing speed: Each swing (2X1200) during IPX3 test:4 seconds per time. Each swing(2X1750)during IPX4 test:12 seconds per time

Test time: 1-999,999min (user defined)

Water pressure in shower: 80~150Kpa (adjustable)

Distance between test sample and device is 200mm.

Appropriate circular turntable (used for fixing sample) with adjustable rotational speed.

Waterproof power plug with 12V/24V

Driving mode: Panasonic 400W servo motor (low noise, accurate speed and angle)

Control system: Siemens touchscreen control system, PLC

Power supply:220V 60Hz
