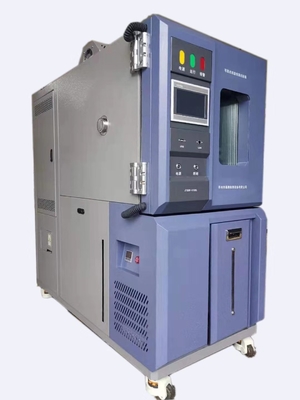

KINGPO KP-HWS125L Temperature And Humidity Chamber (125L, -40℃~+150℃, 20% ~ 98% RH)

Internal Dimension (W × D × H): W500 mm × D500 mm × H500 mm

External Dimension (W × D × H): W760 mm × H1520 mm × D1520 mm

Temperature Range: -40℃ to +150℃

Temperature Fluctuation: ±0.5℃

Temperature Uniformity: ±2℃

Humidity Range: 20% to 98% RH

Humidity Fluctuation: ±2% RH

Humidity Uniformity: 3% RH (no load)

Humidity Deviation: ±3.0% (>75% RH), ±5.0% (≤75% RH)

Cooling Speed: 20℃ to -40℃ at 1℃ per minute (nonlinear, no load)

Heating Speed: -40℃ to 100℃ at ≤3℃ per minute (nonlinear, no load)

Internal Chamber Material: SUS#304 stainless steel with mirror finish

External Chamber Material: 1.5 mm cold-rolled steel plate with rust-proof treatment and plastic spraying

Cooling Method: Air cooling

Controller:

LCD touch screen with programmable temperature and humidity control

Supports setting different parameters for cyclic testing

Insulation Material: 50 mm high-density rigid polyurethane foam

Heater: Explosion-proof type SUS#304 stainless steel fins radiator pipe heater

Lighting: Heat-resistant

Temperature Sensor: PT-100 dry and wet bulb sensor

Observation Window: Tempered glass

Testing Hole: Diameter 50 mm, for cable routing
