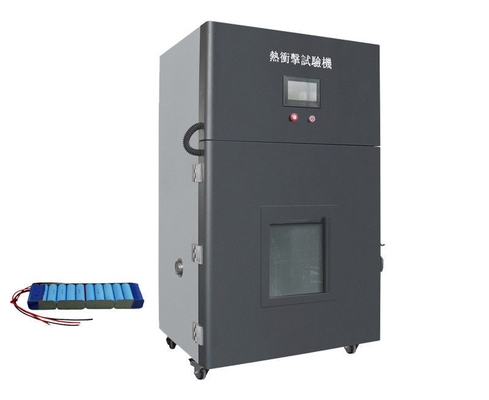

KINGPO KP-940 Battery Thermal Abuse Tester (～200℃)

Temperature Range: Ambient temperature ~ 200℃ (controllable)

Control Accuracy: ±0.5℃

Temperature Distribution: ±2.0℃ (non-load)

Temperature Rising Rate: RT ~ 150℃ (5℃ ±2℃ / minute)

Control Method: PLC Touch Screen Control

Working Room Dimension: W600mm × D500mm × H600mm

External Dimension: W940mm × D780mm × H1620mm

Inner Chamber Material:  SUS304 mirror stainless steel (thickness 3mm); clean and smooth internal surface, easy to clean, high corrosion resistance.All internal materials are environmentally friendly. Inner barrel is welded with no-trace argon arc welding.

External Chamber Material:  SECC steel plate, powder coated (thickness 1.5mm)

Bottom: Installed with universal wheels

Observation Window: Toughened glass with bursting disk

Insulation Material: High-density glass wool, excellent insulation performance.Equipped with high-temperature resistant silicone seal, capable of withstanding >300℃ for long periods.

Power Source: 220V 60Hz

Heating Power: Approx. 3KW
