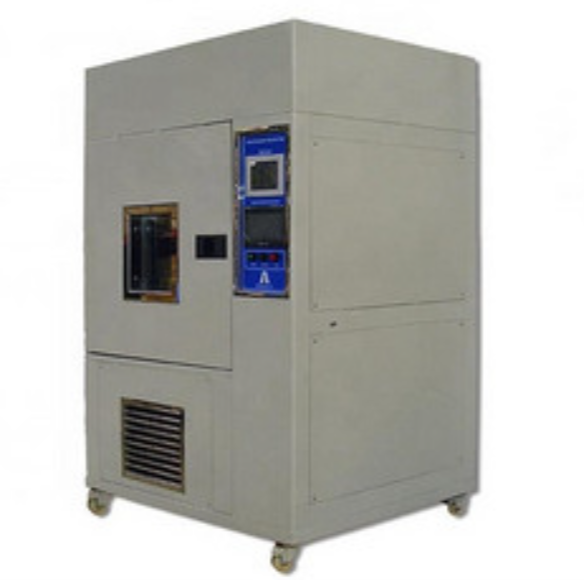

KINGPO KP-8210 Battery Test Chamber

Temperature Chamber Parameter

Temp. Range: 0℃~ +100℃(controllable)

Heating Rate: Average 3℃/min(from 0℃ to 100℃. Non liner, no load)

Cooling Rate: Average 1℃/min(from 100℃ to 0℃, Non liner, no load)

Inner Chamber Dimension: W600 X H750 X D500 MM

External Chamber Dimension: W1500 X H1750 X D1000MM

Inner Short Circuit Main Technical Parameters

Max. Loading: 200KG

Resolution: 1/10000

Force Accuracy: ≤0.5%

Force magnification: 7 Segment auto change

Displacement Resolution: 1/1000

Displacement Accuracy: ≤0.5%

Speed Range: 0.01-20MM/S

Effective Range: 0 ~ 150mm

Max. Testing Space: 300X300MM (Able for special customize according customer requirement)

Voltage Sampling Range: 0—20V

Voltage Resolution: 1MV

Voltage Sampling Frequency: 100HZ

Control System: Servo Control System
