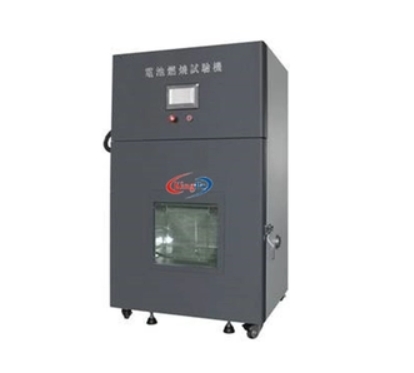

KINGPO KP-8105 Battery Burning Tester (0~999.9s ± 0.1s)

Burner: Bunsen burner with internal diameter 9.5mm and approximate length 100mm

Burning time: 0~999.9s ± 0.1s

Hole surface diameter: 102mm

Mesh screen: 20-hole, weaved by 0.43mm (0.017 inch) stainless steel wire

Light control: Remote wire control with automatic control of process

Wire control distance: 10 meters without barrier

Height: 38mm

Tested octagonal mesh screen width: 24″ (610mm), octagonal, easy to replace and disassemble; height: 12″ (305mm)

Material: Aluminum, weaved by aluminum at a diameter of 0.010 inch (0.25mm) with 16–18 lattices per inch

Protective chamber: Stainless steel, one side of toughened glass with thickness of 50mm; exhaust fan and a reserved outlet for external ventilation kort nozzle

Machine volume: 750 x 750 x 1000mm
