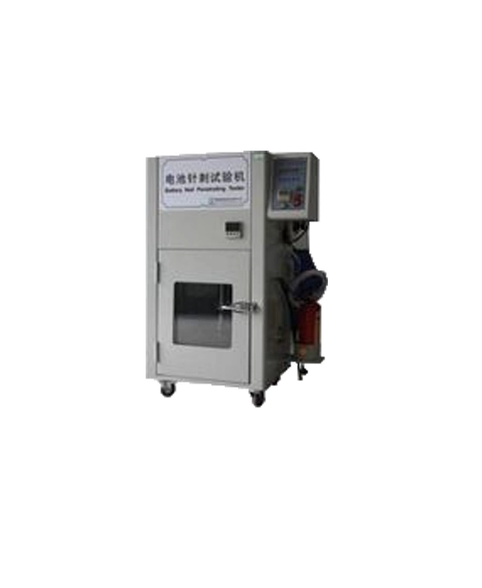

KINGPO KP-5068-B Hydraulic Battery Test Chamber – Penetration (ф2mm—ф8mm, 200mm , 150~200kg)

Steel pin:ф2mm—ф8mm and high temperature resistant Tungstem,100mm in length,each 2 pieces.

Distance between needle to bottom:panel for placing a battery:200mm

Clamped distance:200mm

Penetrating speed:penetrate into it perpendicular to the accumulator plate in 10—40mm/s(Pin stops in the accumulator plate).

Penetrability:150~200kg(maximum 200kg);

Power display:Pressure sensor and high precison pressure sensor

Stroke:200mm

Driving mode:Hydraulic

Clamping mode:Manual

Cabinet Type:box-type,explosion-proof,fireproof,corrosion resistant and easy cleaning.

Explosion-proof cabinet:Internal Material:SUS304#stainless steel

External Material:Cold-rolled steel sheet with baking varnish.4 freely moved universal pulleys

Viewing window:toughened glass,size:250*250mm;

Exhaust fan:¢120mm, 30W ,on the back side.A reserved outlet for connecting exhaust fan pipe

Delay function: 0~ 99H 99S (set freely)

Power:220V , 50~60HZ,3A,1100W

Dimension: 70×55×112cm(L×W×H)
