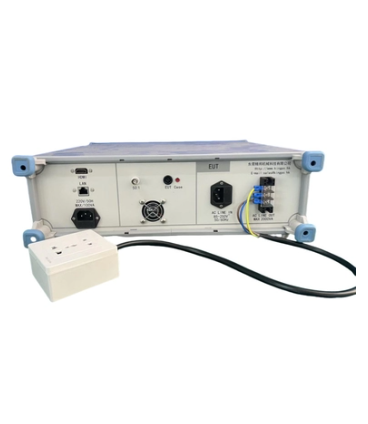

KINGPO KP-1060 Plug Capacitor Discharge Tester

Minimum/Maximum Test Voltage: 0-300V

Maximum Test Current: 10A

Fuse: 10A, 250V, time delay, 1-¼” x ¼”

Probe Impedance: > 100MΩ, < 25pF

AC Peak Detection Accuracy EUT disconnect within 5% of supply voltage peak

Test Time Range: 0.50 – 99.0 Seconds

Test Time Accuracy: ±1% for times ≥ 1 second, +/- 10ms for < 1 second.

Voltage Setting Resolution: 0.1V

Voltage Meter Accuracy: ±1.5% of instrument measuring range

Frequency: 50-60Hz.

Rated Input Voltage: 220V 50/60HZ
