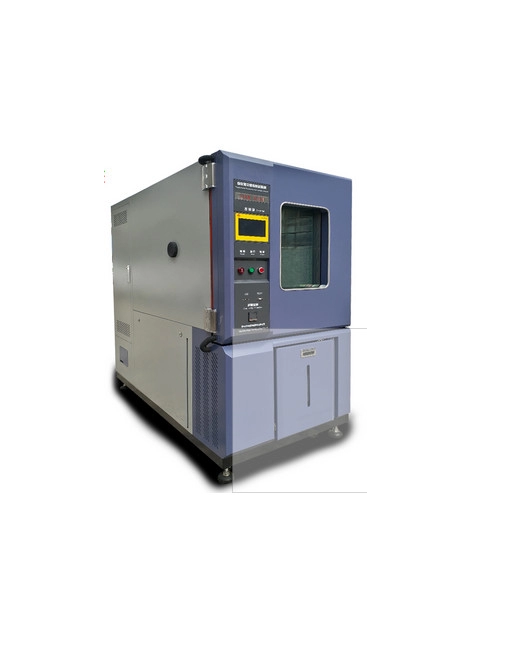

KINGPO KP-100 Environmental Test Chamber (20% ~ 98% R.H, -70°C ~ +150°C, -40°C~+150°C)

Interior Dimension (mm): 500×500×400

Overall Dimension (mm): 880×840×1480


Temp. range: Model S:-70°C~+150°C ,Model L: -40°C~+150°C

Humidity Range: 20% ~ 98% R.H

Humidity bias: +2~-3%R.H

Temp. fluctuation: ≤±0.5°C

Temp. uniformity: ≤2°C

Heating rate: 1.0~3.0°C/min

Cooling rate: 1~1.5°C/min

Material
Shell material: High-quality SUS304 stainless steel plate

Liner material: High-quality SUS304 stainless steel plate

Insulation materials: Ultra-fine glass fiber insulation cotton / rigid polyurethane foam

Door seal: Double resistance to high and low temperature aging and hardening of refined silicone seal

Cold and heat exchange system
Controller: JIANQIAO Special color touch screen Controller

Accuracy range: temperature ± 0.1 °C, indicating accuracy: temperature ± 0.1 °C, resolution: ± 0.1 °C

Circulatory system: Temperature low-noise motors, cycles, , stainless steel multi-leaf type centrifugal fan,the test time can set 999999 hours

Water supply: Electronic device controller automatic control of liquid, and more than recycled water, with water alarm

Humidification mode: External isolated, stainless steel electric steam humidification mode occurs

Dehumidification mode: Condensation method using the dew point temperature of the evaporator coil dehumidification mode laminar contacts

Refrigeration: Unit cooling mode / Dual (cascade) cooling method (air-cooled)

Condenser/ Evaporator: Tecumseh

Compressor: France " Tecumseh " closed refrigeration compressor / France "Taikang" Hermetic Refrigeration Compressors

Security Devices:
Power overload, leakage, grounding, over-temperature protection (with voice prompts), fast fuse, compressor over-voltage protection

Standard:
 Resistant to high and low temperature heat tempered glass hollow glass windows:

300 × 200 (mm), a lighting, , the two sample holder

Power supply: ACø220V·50HZ/380V·50HZ

Ambient temperature: 15°C~+30°C ≤85%R.H
