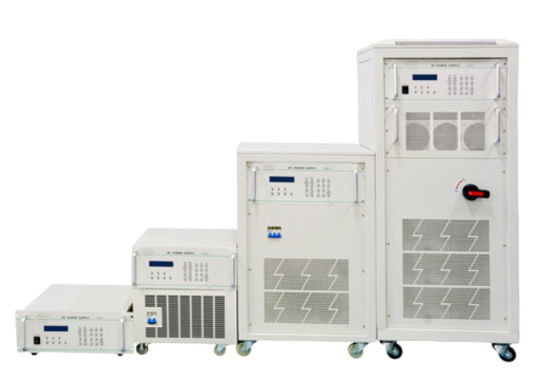

KINGPO APD1000 DC Power Source

Input voltage range:1Ø2W+G 110V/220V±10% 220V±10% 3Ø4W+G 220V/380V±10%

Constant Voltage Mode

line regulation≦±0.02% ±6Count load regulation≦≤± 0.05% of full scale

Ripple&Noise≦0.1%RMS

Constant current mode

line regulation≦±0.05% ±3Count load regulation≦≤± 0.15% of full scale

Ripple&Noise≦0.3%RMS

Constant power mode

line regulation≦±0.05% ±6Count load regulation≦≤± 1% of full scale

Overvoltage setting range: 0% ~110% of rated voltage

Overcurrent setting range: 0% ~110% of rated current

CV transient response time: 10ms(at Resistance load 10%~90%)

Output climb rate: up 10 to 100% <30ms down <150ms
