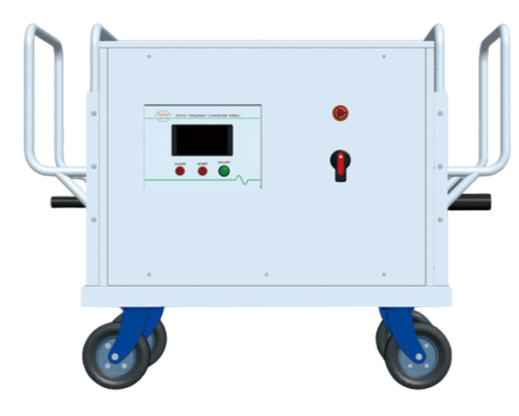

KINGPO APA5020S EF Signal Interlocking Aviation Power Supply (20KVA, 54/27A)

EF Signal Interlocking AC Aviation Power Supply

Output Capacity: 20KVA

Input Power: 3Ø4W+G 220V/380V±15%, 50/60Hz±3Hz

Output Frequency: 400Hz(Trailer type)/300~ 500Hz (Vertical type)Resolving power 0.01Hz accuracy±0.02%F.S.

Output Voltage: 115/200V±15V Resolving power 0.1V accuracy 0.5%F.S.+4counts

Output current: 54/27, Resolving power 0.1A accuracy 0.5%F.S.+4counts

Load Regulation: ≤1%(Resistive load)

Waveform Distortion: ≤2%(Resistive load)

Mete Display: Over-voltage/under-voltage phase-gap protection and alarm with overload, over-current and over-temperature short circuit

Overload capacity: 125%(600S)150%(30S)200%(10S)Other specifications are optional

Weight: 230kg

W*H*D: 510*780*710mm

Working condition: Ambient temperature -40℃~50℃ relative humidity 0~90% (Non-condensable)
