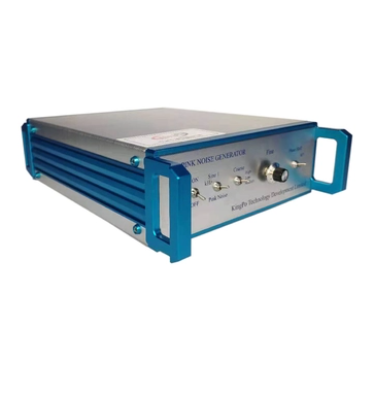

KINGPO 9280 Pink Noise Generator (1000 Hz)

Pink noise or sine wave 1000 Hz (not at the same time)

Two output channels when testing

The channels can be phase shifted to 0° or 90°

Fine adjustments of output voltage

RCA and 4 mm banana type output connectors

Audio-cables for test object included (RCA and 3,5 mm phono)

Output signal according to IEC 60065 Annex C, fig. C1 (IEC60268)

Amplitudes of sine wave and pink noise according to table below:

Output Voltage/ Sine wave 1 kHz/ Filtered pink noise

Low/ 0-100 mV/1 kohm/ 0-35 mV rms/1 kohm

Medium/ 0-1 V/1 kohm/ 0-350 mV rms/1 kohm

High/ 0-5 V/1 kohm/  0-1.7 V rms/1 kohm

Weight: 4kg

Dimensions: 290x270x60 Mm (LxWxH)

Supply: 220 VAC 50 Hz
