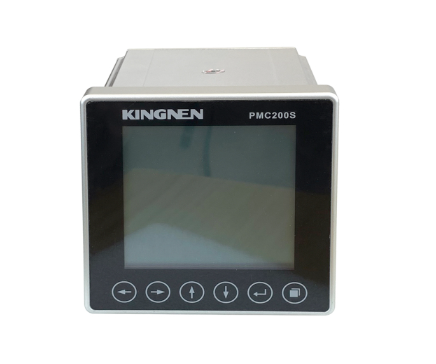

Kingnen PMC200S-1-1-0-2-02 Multifunctional Power Meter (57.7/100V; 5A)

Rated measuring voltage: 57.7/100V

Rated measurement current: 5A

Power supply: Power supply：85~264 VAC/45-65Hz，100~300 VDC

Digital input (DI): Without DI

Relay output: Optional 2 channels relay output

AI01 port optional for AI/AO modules: none

AI02 port optional for AI/AO modules: 4-20mA DC analog input measure(AI)

Electrical Characteristics

Measure type: 3P3W AC system,3P4W AC system

Sampling Rate: 128 points per cycle

Data refresh rate: 1S

Measurement accuracy

Current: ± 0.2%FS

Voltage: ± 0.2%FS

Power: 0.5S

Frequency: ± 0.001Hz

Active energy: 0.5S

Reactive energy: 1.0S

DC input (AI): 0.5% FS

DC output (AO): 0.5% FS

Input Voltage Characteristics

Measure Voltage: 3 *220/380V(Directly input); 3 * 57.7/100V (PT secondary side)

Allowed overload capability: 1.2 times / continuous

Input resistance: 300KΩ

Input current characteristics

Measure current: 5A (CT Secondary side)Or 1A (CT Secondary side)

Allowed overload capability: 1.2 times / continuous

Input resistance: < 0.1Ω

Binary input

Working voltage: 12~24VDC

Input resistance: 12KΩ

Isolation voltage: 2KV

Relay output

Node type: Mechanical contact

Node capacity: 220VAC/5A , 30VDC/5A

Mechanical performance

Weight: 0.5kg

IP Protection Level: Meter Panel IP52，Meter Host IP30

Dimension: Host: 96 X 96 X 72mm; Host + modules: 96 X 96 X 120mm

Working temperature: Display: -20~70 ℃; Meter: -25~70 ℃

Storage temperature: Meter + Display screen: -40~85 ℃

Relative humidity: 5% - 90%RH , No condensation

EMC

Anti-static discharge interference: IEC 61000-4-2, Level 4

Anti-fast transient group pulse: IEC 61000-4-4, Level 4

Anti-surge: IEC 61000-4-5, Level 3

Resistance to power frequency magnetic field: IEC 61000-4-8, Level 3

Electrical insulation performance

Insulation resistance: GB/T13729 , > 50MΩ

Power frequency withstand voltage: GB/T13729 , AC 2KV 50Hz /1min

Impulse voltage: GB/T13729 , 5KV , 1.2/50us
