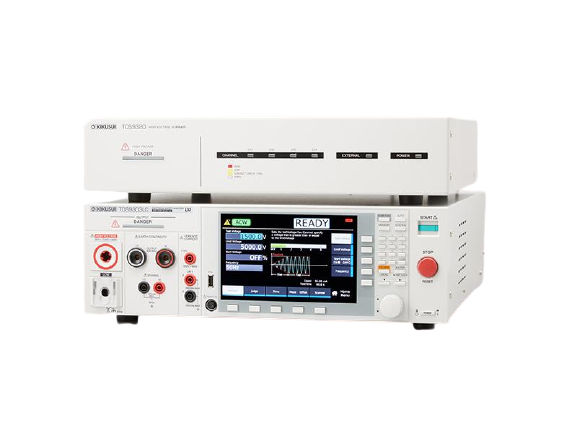

KIKUSUI TOS9320 High Voltage Scanner (AC 5 kV/ DC 7.2 kV)

Maximum operating voltage: AC 5 kV/ DC 7.2 kV

Number of channels: 4

CONTROLLER INTERFACE (external control): D-sub 25-pin connector

Power supply:

Nominal voltage range(allowable voltage range): 100 Vac ~ 240 Vac (90 Vac ~ 250 Vac)

Power consumption: 50 VA max

Allowable frequency range: 47 Hz ~ 63 Hz

Weight: Approx 8 kg (17.6 lb)

Accessories:

Power cord : 1pc.

High-voltage test lead [TL31-TOS] (8 red)

Lead for high voltage parallelconnection TL33-TOS (1 pair)

Interface cable (1 pc.), CONTROLLER INTERFACEplug (1 set)

High-voltage warningsticker (2 pc.)

Channel labels (For the panel (1 sheet), For the test leads (1 sheet))

User’s manual (1 copy)

Safety Information (1 copy)
