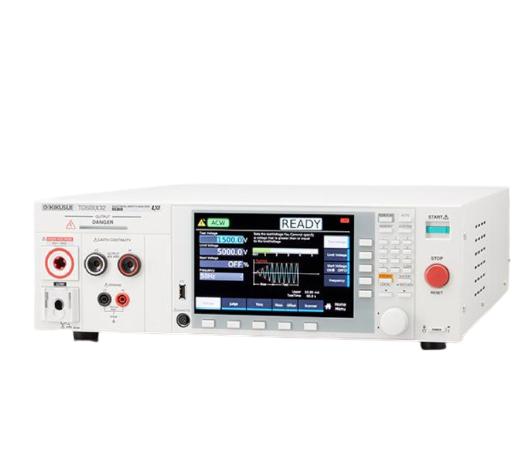

KIKUSUI TOS9302 Electrical Safety Multi-analyzer (5kV / 100mA)

1. AC Withstanding Voltage (AC Hipot)

Output range: 0.05 kV ~ 5.00 kV; 1V; ±(1.2 % of setting + 20 V) (at no load)

Max. rated load: 500 VA(5 kV / 100 mA)

Max. rated current: 100 mA (when the output voltage is 0.2 kV or higher)

Transformer rating: 500 VA

Output voltage waveform: Sine

- Measurement: V, A

- Other function: Judgment, Timer

2. Earth Continuity Test

Current setting range: 3.0 A ~ 42.0 A AC/DC; 0.1 A; ±(1 % of setting + 0.4 A)

Maximum rated output AC: 220 VA

Maximum rated output DC: 220 W

Measurement: A, V, R

Other function: Judgment, Timer

3. General

Interface: REMOTE, SIGNAL I/O, SCANNER, USB, Remote control

Power supply

Nominal voltage range(allowable voltage range): 100 Vac ~ 120 V, 200 V ~ 240 V (90 Vac ~ 132 V, 170 V ~ 250 V)

Power consumption:

No load(READY state) 100 VA or less

Rated load 800 VA max.

Allowable frequency range: 47 Hz ~ 63 Hz

Weight: Approx 20 kg (44.1 lb.)

Accessories:

Power cord : 1pc.

High test lead (TL31-TOS) : 1set

SIGNAL I/O plug (1 set)

High-voltage warning sticker (1 pc.)

Setup Guide (1 copy)

CD-ROM (1 disc)

Safety Information (1 copy)

Heavy object warning label

Test leads for earth continuity testTL13-TOS
