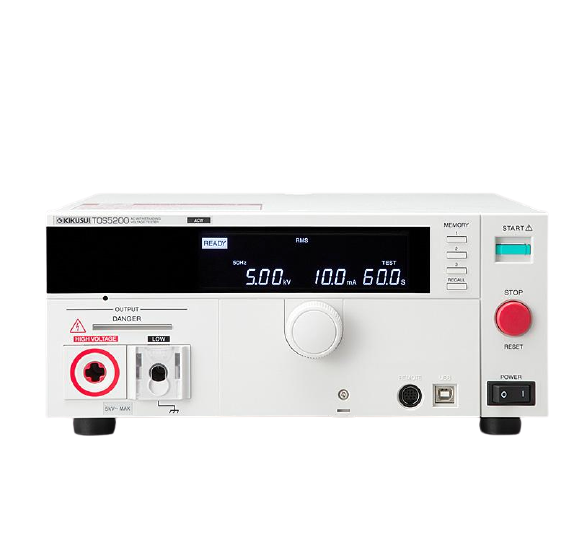

KIKUSUI TOS5200 AC Hipot Tester (0.05 kV ~ 5.00 kV)

Withstanding voltage tester

Output range: 0.05 kV to 5.00 kV; ± (2 % of set + 20 V) when no load is connected

Operating range: 0.00 kV to 5.50 kV; 10V

Max. rated output: 500 VA (5 kV/100 mA)

Max. rated voltage: 5 kV

Max. rated current: 100 mA (when the output voltage is 0.5 kV or greater)

Transformer rating: 500 VA

Output voltage waveform: Sine

Measurement: V, A

Other functions: Test mode, Protection (Interlock, Power Supply, Volt Error, OLP, OHP, ORP, Remote, USB)

Interfaces: USB, RS232C, REMOTE, SIGNAL I/O

Dimensions: (mm(inches))(maximum) 320 (12.6") (330(12.99")) W × 132(5.2") (150(5.91")) H × 350(13.78") (420(16.54")) D

Weight: Approx. 14 kg (30.9 lbs)

Accessories:

Power cord : 1pc.

High test lead (TL31-TOS) :1set (1 red wire and 1 black wire, each with alligator clips) 1.5 m

D-sub 25-pin plug : 1set ; assembly type

High-voltage warning sticker : 1pc.

Setup Guide

Quick Reference(1 each for English and Japanese)

Safety informaion

CD-R

Datasheet

 Manual
