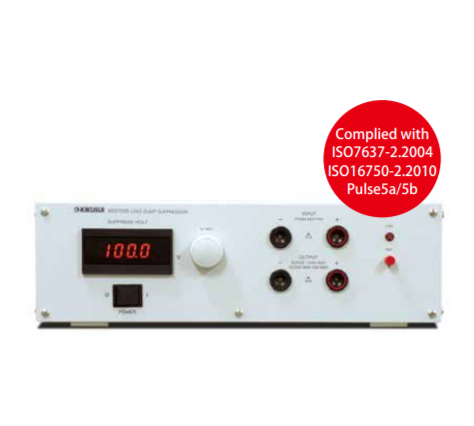

KIKUSUI SPEC80677 Load Dump Suppressor (60VDCmax/50Amax)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Load dump suppressor for generating pulse 5b: External-connect type
CDN capacity: 60VDCmax 50Amax
Maximum input surge voltage (Us): 200 V Max
Settable suppressed voltage range (Us*): 10 ~ 100 V, in steps of 0.1 V / accuracy:3.0 V
Maximum suction surge current: 300A Max
Maximum suction surge interval: 30 s or more
Driving power: 100VAC ~ 240VAC 50/60Hz
Power consumption: 90VA or less
Dimensions: 440(17.32”)W×133(5.23”)H×550(21.65”)D mm
Weight: Approx. 17kg(37.47lbs)
