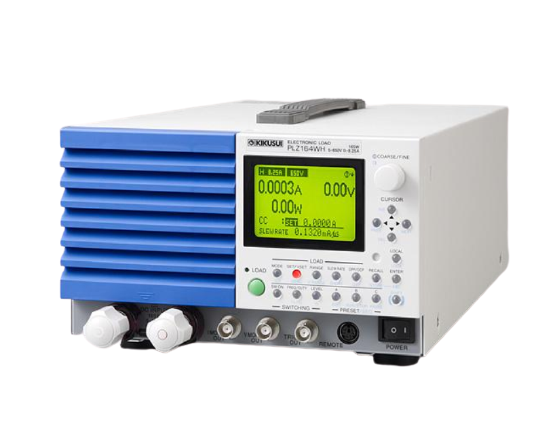

KIKUSUI PZL164WH Multifunctional High Voltage DC Electronic Load (16.5A; 330W)

Operating voltage (DC): 5 V to 650 V

Current: 8.25 A

Power: 165 W

- CC mode

Setting range:

Range H: 0 A to 8.6625 A

Range M: 0 A to 866.25 A

Range L: 0 A to 86.625 A

Setting accuracy:

L range, M range: ±(0.2 % of set + 0.1 % of f.s )

L range, 300pA or more: ±(0.2 % of set + 0.1 % of f.s)

L range, less than 300pA: ±(0.2 % of set + 0.1 % of f.s) + Vin/ 2.21 MΩ

Parallel Operation: ±(0.2 % of set + 1.1 % of f.s)

Ripple: rms: 2 mA/ p-p: 20mA

- CR mode

Setting range

H: 1.7325 S to 0 S

M: 173.25 S to 0 S

L: 17.325 S to 0 µS

Setting accuracy:

H, M range: ±(0.5 % of set + 0.5 % of f.s)

L range: ±(0.5 % of set + 0.5 % of f.s) + Vin/ 2.21 MΩ

Parallel operation: (1.2% of the set + 1.1% of the f.s)

- CV mode

Setting range:

H: 0 V to 682.5 V

L: 0 V to 68.25 V

Setting accuracy: ±(0.2 % of set + 0.2 % of f.s)

- CP mode

Setting range:

Range H: 0 W to 173.25 W

Range M: 0 W to 17.325 W

Range L: 0 W to 1.7325 W

Setting accuracy:

H range, M range; ±(2.5 % of f.s )

L range, 0.25 W or more: ±(3 % of f.s)

L range, Less than 0.25 W: ±(3 % of f.s + Vin/ 2.21 MΩ)

Parallel Operation (TYP): ±(5 % of f.s + Vin/2.21 MΩ) at 23 ˚C ±5 ˚C

Measurement function: V, A, P

Other functions: Sequence, Remote sensing, Protection function (OVP, OCP, OPP, UVP)

Communication: GPIB, RS232C, USB

Accessories:

Power cord × 1 pc. (with plug, Length: approx. 2.4 m),

Load input terminal cover × 1 piece (2 lock plates provided),

Set of screws for the load input terminal × 2 sets (bolts, nuts, and spring washers),

Setup guide × 1 piece(Japanese, English),

Quick Reference(Japanese:1 piece, English:1 piece), CD-ROM × 1 piece
