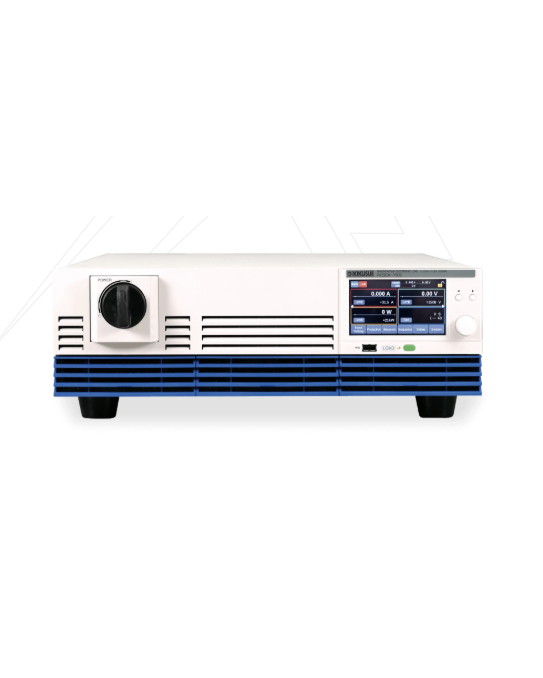

KIKUSUI PXZ20K-1500 High-Capacity Regenerative Electronic Load (30V~1500V, 30A, 80／40A)

Rating:

Rated power: 20000 W

Rated voltage (DC): 30 V to 1500 V

Rated current: 30 A

Constant voltage (CV) mode

Maximum settable voltage: 1575 V

Setting accuracy: ±(0.2 % of setting + 0.1 % of rating)

Setting resolution: 0.1 V

Remote sensing Maximum compensation voltage (reciprocating) (TYP): 10 % of rating

Response switching: FAST, SLOW

Constant current (CC) mode

Maximum settable current: +31.5 A

Setting accuracy: ±(0.75 % of rating)

Setting resolution: 0.002 A

Power fluctuation: ±60 mA

Load variation: ±60 mA

Rise time (TYP): 1 ms

Fall time (TYP): 1 ms

Response switching: FAST, SLOW

Constant resistance (CR) mode

Conductance rating: 200.000 mS

Setting range: 0 ms to 210.000 mS

Setting accuracy: ±(0.5 % of setting + 0.5 % of rating)

Setting resolution: 0.02 mS

Response switching: FAST, SLOW

Constant power (CP) mode:

Maximum settable power: 21000 W

Setting accuracy: ±(0.5 % of power rating + 0.5 % of current rating × Vin)

Setting resolution: 2 W
