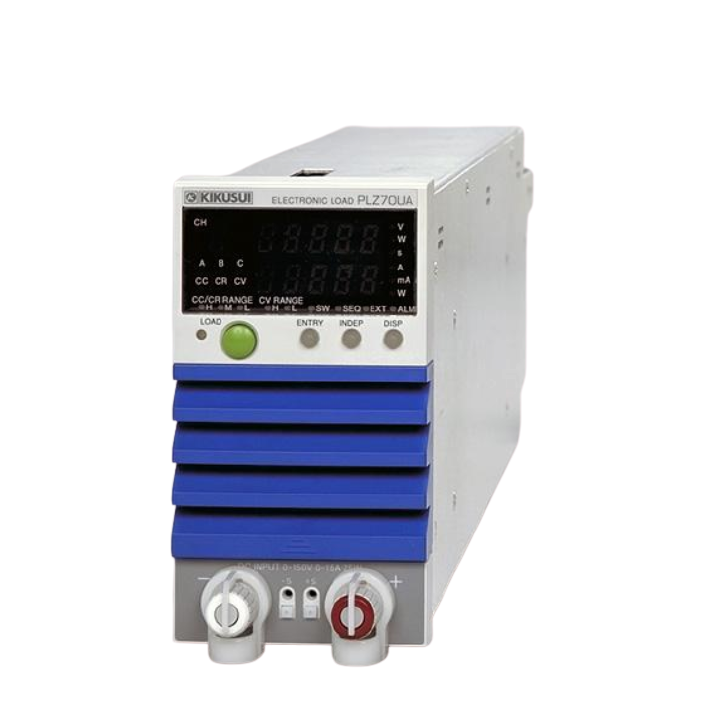

KIKUSUI PLZ70UA Modular Multifunction DC Electronic Load (150V, 15A, 75W)

Operating voltage (DC): 1.5V ~ 150 V

Current:

-H: 15A/75W

-M: 1.5A/75W

-L: 150mA/22.5W

- CC mode

Operating range:

Range H: 0 A ~ 15A

Range M: 0 A ~ 1.5A

Range L: 0 A ~ 150mA

Setting accuracy: ±(0.2 % of set + 0.2 % of f.s) + Vin/ 500 kΩ

Ripple: rms: 7.5 mA/ p-p: 50mA

- CR mode

Setting range

H: 0 S ~ 10 S

M: 0 S ~ 1 S

L: 0 S ~ 100 mS

Setting accuracy: ±(0.5 % of set + 0.5 % of f.s) + Vin/ 500 kΩ

- CV mode

Operating range:

H: 0 V ~ 150 V

L: 0 V ~ 15 V

Setting accuracy: ±(0.1 % of set + 0.1 % of f.s)

Measurement function: V, A, P

Other functions: Sequence, Remote sensing, Protection function (OVP, OCP, OPP, UVP, OHP)

Communication: GPIB, RS232C

Accessories:

Rear load in terminal cover: 1pc

Set of screws for the load input connector: 2 sets (M6 bolt, M6 nut, M6 spring washer, M4 screw)

Load unit attachment screws: 2 pcs (M3-10 screws, attached to the unit)

Sensing terminal screw on the rear panel: 2 pcs (M3-6 screws, attached to the unit)
