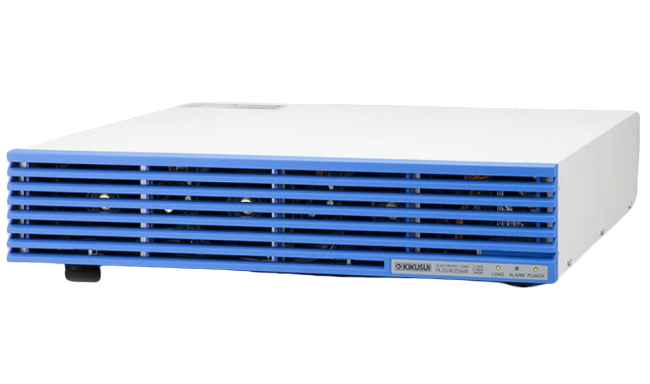

KIKUSUI PLZ2405WB Multifunctional DC Electronic Load (Booster, 480A/2400W)

Operating voltage: 1 Vdc to 150 Vdc

Current 480 A

Power 2400 W

Current range:

H range: 0 A to 480 A

M range: 0 A to 48 A

L range: 0 A to 4.8 A

Setting accuracy

CC mode:

H range: ± (0.4% of set + 0.8% of range)

M range: ± (0.4% of set + 0.8% of range)

L range: ± (0.4% of set + 5% of range)

CR mode

H range: ± (0.5% of set + 1.5% of range)

M range: ± (0.5% of set + 1.5% of range)

L range: ± (0.5% of set + 5% of range)

CV mode: H,M,L range: ± (0.2% of set + 0.2% of range)

CP mode:

H range: ± (2% of range + 0.4% current range × Vin*1 )

M range: ± (2% of range + 0.4% current range × Vin*1 )

L range: ± (2% of range + 2.5% current range × Vin*1 )

Measurement accuracy

Voltmeter accuracy: ± (0.1% of reading + 0.1% of range)

Ammeter accuracy:

H range: ± (0.4% of reading + 0.8% of range)

M range: ± (0.4% of reading + 0.8% of range)

L range: ± (0.4% of reading + 5% of range)

Weight: Approx. 15 kg (33.07 lb)

Accessories: Power cord, Load input terminal cover, Parallel operation signal cable kit (PC01-PLZ-5W),

Load input terminal screw set (2 sets), Screws for the load input terminal cover (2 pcs.), Operation manual
