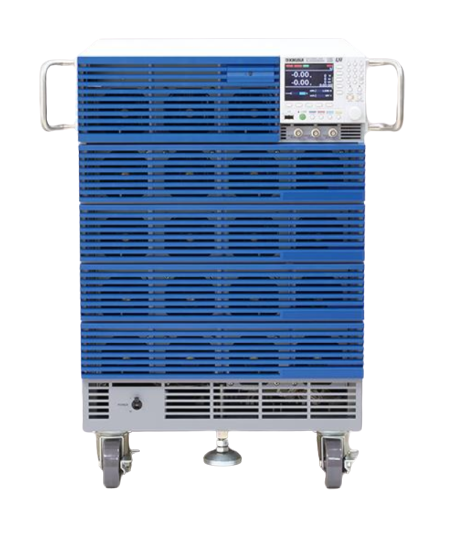

KIKUSUI PLZ20005WH2 High Voltage DC Electronic Load (400A/ 20000W)

Operating voltage (DC): 10 V to 1000 V

Power: 20000 W

Current: 400A

Constant current (CC) mode

Operating range: 0 A to 400 A

Setting range: 0.00 A to 404.00 A

Setting accuracy: ±(0.2 % of setting + 0.1 % of rating)

Constant resistance (CR) mode:

Setting range

H range: 10.1000 S to 0.0000 S

L range: 101.000 mS to 0.000 S

Setting accuracy:

H range ±(0.5 % of setting + 0.5 % of rating)

L range ±(0.5 % of setting + 0.2 % of rating)

Constant voltage (CV) mode

Setting range: 0.00 V to 1010.00 V

Resolution: 0.02 V

Setting accuracy: ±(0.05 % of setting + 0.05 % of rating)

Constant power (CP) mode

Operating range: 0 W to 20000 W

Setting range: 0.0000 kW to 20.2000 kW

Setting accuracy: ±(0.5 % of rating + 0.4 A × Vin)

Arbitrary I-V characteristics (ARB) mode

Response speed: 500 μs, 1 ms, 2 ms, 5 ms, 10 ms, 20 ms, 50 ms, 100 ms, or off

Measurement function: V, A, P

Pulse function: Frequency setting range 1.0 Hz to 10.0 kHz

Other functions: Alarm, Sequence, Cutoff function, Integration display, Remote sensing

Communication: GPIB (option), RS232C, USB, LAN

Accessories:

Power cord (1 pc., length: 2.5 m), Safety terminal adapterTL41 (red 1 set, black 1set), External control connector kit (1 set), Safety Information (1 copy), Setup Guide (1 copy), Quick Reference(Japanese 1 sheet, English 1 sheet), CD-ROM (1 disc)
