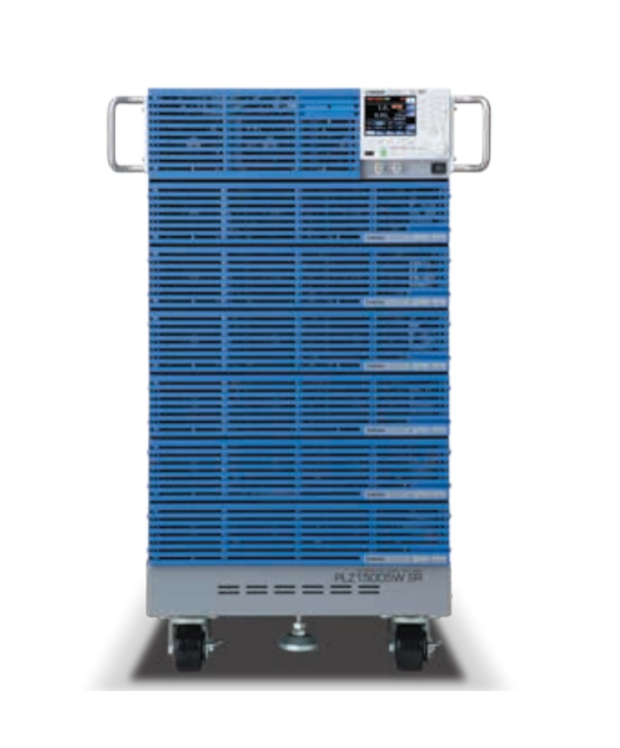

KIKUSUI PLZ15005W SR Multifunctional DC Electronic Load (Smart rack, 15.6 kW)

Rating:

Operating voltage (V): 1 to 150

Current (A): 2160

Power (W): 15600

Constant current mode (CC)

Operating range:

H range (A): 0 to 3276

M range (A): 0 to 327.6

L range (A): 0 to 32.76

Ripple: 312 mArms

Constant voltage mode (CV)

Operating range:

H range (V): 0 to 157.50

L range (V): 0 to 15.750

Resolution:

H range (mV): 5

L range (mV): 0.5

Constant resistance mode (CR)

Operating range:

H range (S): 3276 to 0

M range (S): 327.6 to 0

L range (S): 32.76 to 0

Constant power mode (CP)

H range (W): 0 to 16380

M range (W): 0 to 1638

L range (W): 0 to 163.8

Interfaces: GPIB (Option), RS232C, USB, LAN

Weight (kg): ≈ 160

Power consumption (VA): ≈ 655
