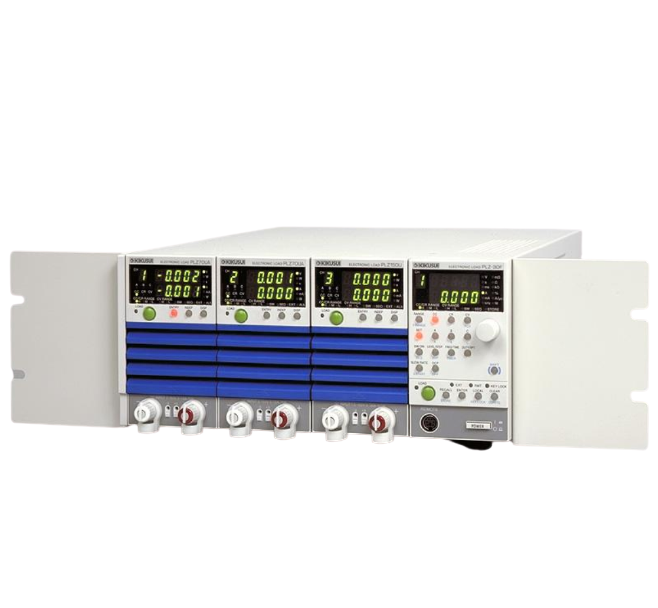

KIKUSUI PLZ-30F Control Frame

Rated supply voltage: 100 VAC to 240 VAC (90 VAC to 250 V) single phase

Rated frequency: 50 Hz or 60 Hz (47 Hz to 63 Hz)

Power consumption:

- Frame alone: 33 VA or less

- When load units are installed in all channels: 300 VAmax

Insulation resistance: 500 VDC, 30 MΩ or more (ambient humidity of 70% RH or less)

Withstand voltage: No abnormalities at 1500 VAC for 1 minute.

Ground continuity: 25 Aac, 0.1Ω or less

Number of installable load modules: 3

Accessories:

- Power cord

- Blank panel (front panel) : 2pcs max

- Protection dummy plug: 2pcs

- Operation manual
