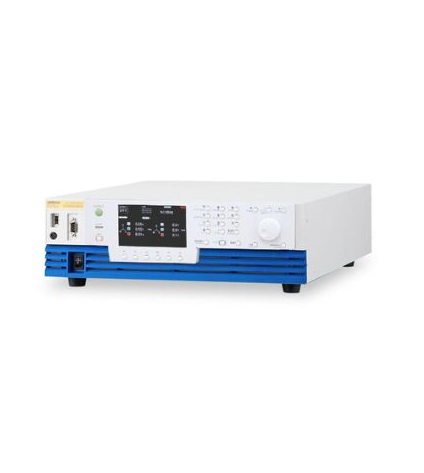

KIKUSUI PCR3000WEA2 AC/DC Programmable Power Supply (3 kVA)

Rated Output – AC Mode

Phase: Single-phase, three-phase, single-phase 3-wire system

Power [VA]: 3k, 3k, 2k

Phase Voltage [V]:

Guaranteed voltage range specification: 1 to 160 / 2 to 320

Output range (L/H):

Voltage setting range: 0 to 161.0 / 0 to 322.0

Maximum current (L/H range) [A]: 30 / 15, 10 / 5, 10 / 5

Frequency [Hz]: 1 to 5000

Rated Output – DC Mode

Power [W]: 3k

Voltage [V]:

Guaranteed voltage specification range: ±1.4 to ±226 / ±2.8 to ±452

Output range (L/H):

Voltage setting range: -227.5 to +227.5 / -455.0 to +455.0

Maximum current (L/H) [A]: 30 / 15

Input Rating (AC RMS)

Phase: Single-phase

Voltage [V]: 100 to 120, 200 to 240

Apparent power [kVA or less]: 4

Current [A or less]: 48 / 24
