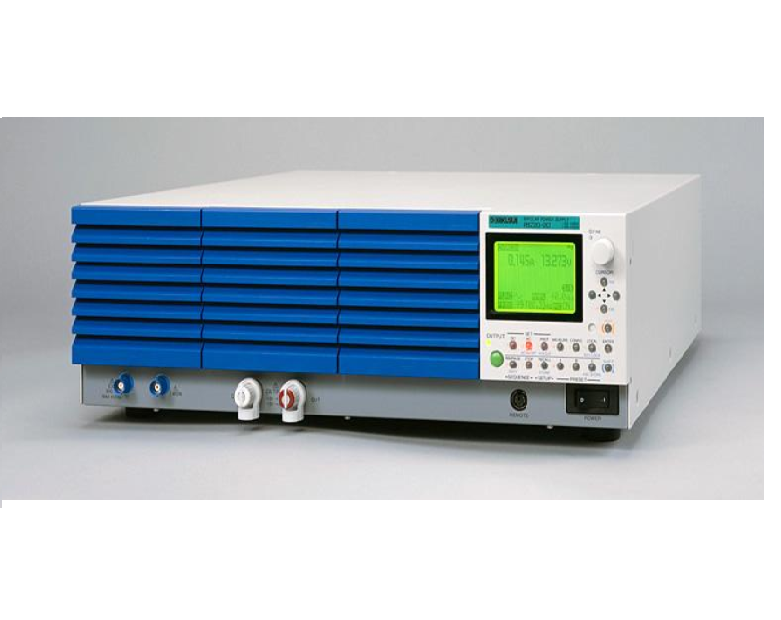

KIKUSUI PBZ20-20 DC Bipolar Power Supply (±20V, ±20A)

Nominal input voltage: 100 Vac to 240 Vac, 50 Hz to 60 Hz

Output power: 400 W

Output voltage: ±20 V

Output current: ±20 A

1- Constant voltage (CV mode)

*DC Voltage:

Setting range: 0V to ±21V, 0V to 21V

Setting accuracy: ± (0.05 % of setting + 0.05 % of rtg)

*AC voltage:

Setting range: 0 to 42Vpp

Setting accuracy: ±0.5 % of rtg

*AC frequency:

Setting range: 0.01 Hz ~ 100.00 kHz

AC waveform

Type: Sine wave, square wave, triangle wave, and 16 user-defined arbitrary waveforms

Start phase: 0° to 359 °

Square wave duty cycle: 0.1 % to 99.9 % (f < 100 Hz)

Response: 3.5 μs, 10 μs, 35 μs, 100 μs

Ripple noise: 20 mV (TYP)

Load effect: ±(0.005 % of setting + 1 mV)

Source effect: 10 ±(0.005 % of setting + 1 mV)

2- Constant current (CC mode)

*DC current:

Setting range: 0 A ~ ±21 A

Setting accuracy: ±0.3 % of rtg

*AC curent:

Setting range: 0 to 42Vpp

Setting accuracy: ±0.5 % of rtg

*AC frequency:

Setting range: 0.01 Hz ~ 200.00 kHz

AC waveform

Type: Sine wave, square wave, triangle wave, and 16 user-defined arbitrary waveforms

Start phase: 0° to 359 °

Square wave duty cycle: 0.1 % to 99.9 % (f < 100 Hz)

Response time: 35 μs, 100 μs, 350 μs, 1 ms

Ripple noise: 3mA

Load effect: ±(0.01 % of setting + 1 mA)

Source effect: ±(0.01 % of setting + 1 mA)

3- Measurement display function

Measurement accuracy:

DCV : ± (0.05 % of rdng + 0.05 % of rtg)

ACV, ACV+DCV : ±(0.5 % of rdng + 0.1 % of rtg) ở 5 Hz ~ 10 kH

DCA : ±(0.3 % of rdng + 0.1 % of rtg)

ACA, ACA+DCA : ±(3 % of rdng + 0.1 % of rtg) ở 5 Hz ~ 10 kHz

Protection functions: Overvoltage, Overcurrent, Overheat, Power limit

Control functions: I/O

Interface: RS232C, GPIB, USB và LAN (Optional)
