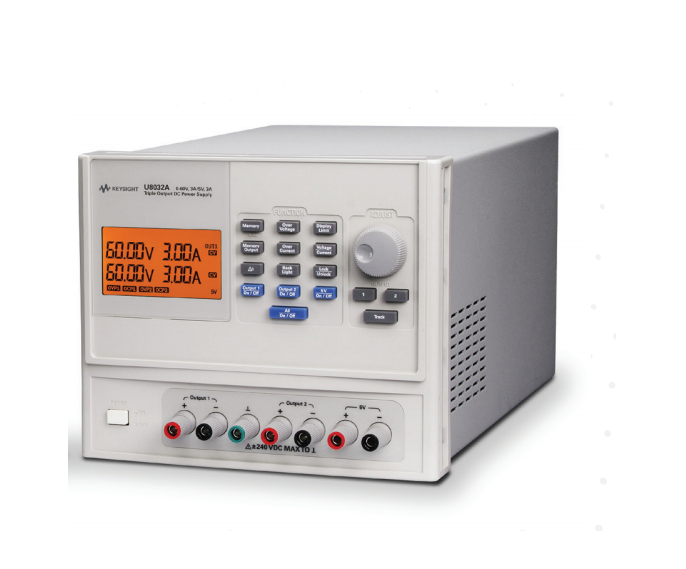

KEYSIGHT U8032A Triple-Output DC Power Supply (60V/3A(2x) & 5V/3A, 375W)

• Total output power: 0- 375 W

• There are 3 output terminals: 2 outputs 60V/3A and 1output 5V / 3A.

• Excellent load and line regulation (CV: < 0.01% + 2 mV; CC: <0.02% + 2 mA)

• Power supply: AC 100- 600 V, 47- 63 Hz

• Fast transient response < 50 µs

• Stability (output drift):

Voltage: < 0.02%

Current: < 0.1%

• Ripple & noise (20 Hz - 20 MHz): ≤ 1 mVrms (typically 0.5 mVrms) and ≤ 1 mArms

• Display: LCD

• Dimensions (H x W x D): 179.0 x 212.3 x 379.0 mm

• Weight: 8.2 kg

• Accessories included: Power cord, instruction manual

Datasheet
