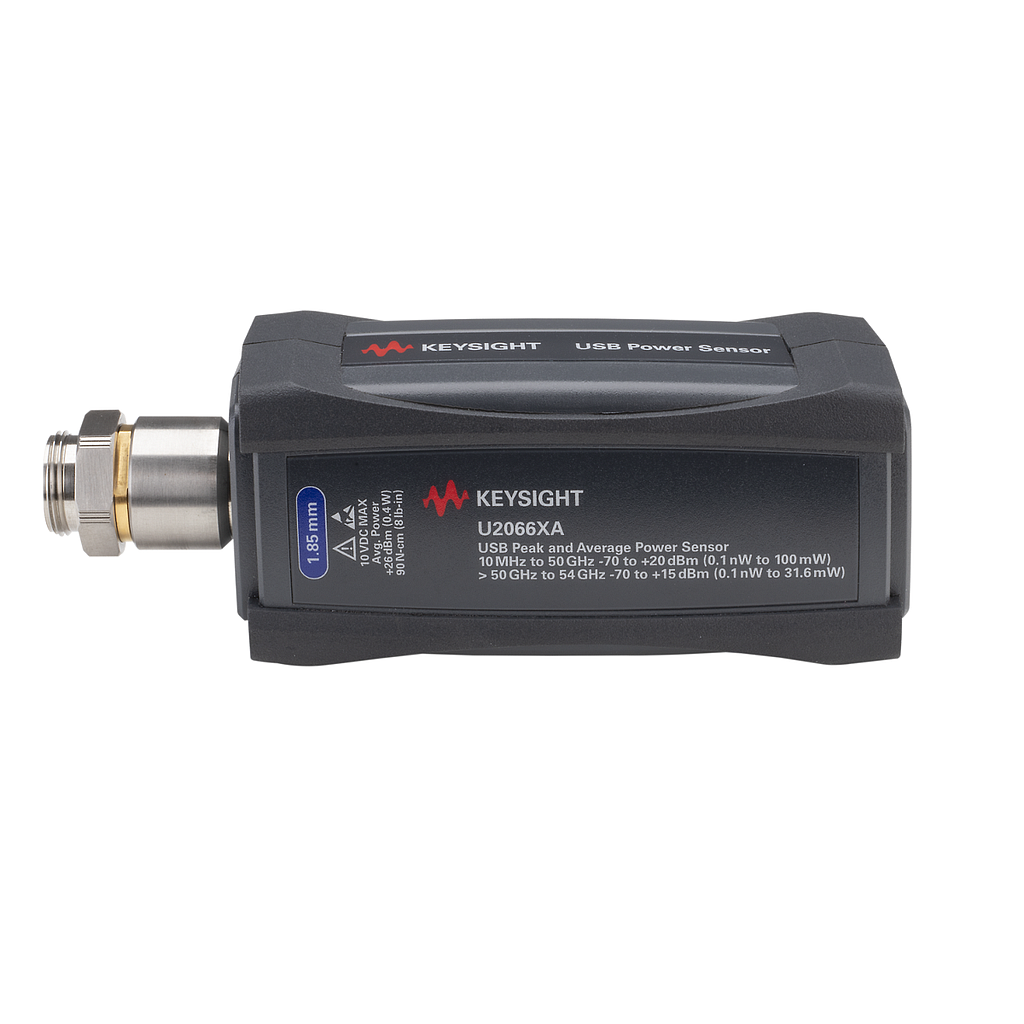

KEYSIGHT U2066XA Wide Dynamic Range Peak and Average Power Sensor (USB type, 10 MHz ~ 54 GHz)
ManufacturerKEYSIGHT(View more products from this manufacturer)
ModelU2066XA
USD 33,601.20
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency Range: 10 MHz to 54 GHz
Power range:
−70 to +20 dBm (10 MHz to 50 GHz)
−70 to +15 dBm (> 50 GHz to 54 GHz)
Connector type: 1.85 mm (male)
Maximum power
Average: +26 dBm
Peak: +29 dBm for < 10 µs duration
Voltage: ≤ 10 VDC
Zero and calibration: Internal zero and calibration supported
Maximum sampling rate: 20 Msamples/second continuous sampling
Power linearity at 5 dB step: Average mode: < 1.0%
